How to remove and refit a steering wheel on Volvo V70?

To remove the steering wheel, drive the car straight ahead and park the car with the front wheels straight ahead. Disconnect the battery negative lead and wait for 10 minutes. Place masking tape on the top of the steering wheel hub and steering column upper shroud and draw a line with a pencil across both - for alignment. Remove the airbag unit from the steering wheel, making sure that the steering wheel is straight before locking the rotary contact reel with a lower screw. Undo the steering wheel center retaining bolt and lift the wheel off the column shaft while passing the wiring and plastic strip through the hole. For refitting, be sure that the front wheels are straight ahead, pass the wiring through the steering wheel hole, attach the steering wheel with the column shaft, and align the marks made during removal and make sure the contact reel pegs fit in the recesses. Turning the steering wheel when the contact reel is locked to prevent damage. Refit steering wheel retaining bolt and make it finger tight and remove airbag contact reel locking screw and refit screw and plastic. Finally, tighten the steering wheel retaining bolt to the correct torque and reattach the airbag unit to the steering wheel.

How to remove and refit the airbag from the steering wheel on Volvo V40?

To take off the air bag, first place the front wheels straight ahead and run the steering lock. Next, loosen and take off the steering wheel retaining nut while holding the wheel rim to avoid only using the steering lock, which may damage the wheel rim. Mark alignment of the steering wheel and the steering column shaft. Then, take the locking screw off the plastic strip lock and lock it to the lug of the airbag contact unit by light tightening so that it does not rotate. Carefully remove the steering wheel from the column splines without damaging the wiring of the contact unit. To refit the indicator column, make sure that the switch column is in the central (off) position (to avoid breaking the switch tab), pass the contact unit wiring through the steering wheel center, seat the wheel on the column splines and make sure that it is aligned with the previously made marks. Refit the steering wheel retaining nut and tighten it to the specified torque. Finally, remove the locking screw on the contact unit lug, refit it to the plastic strip, and screw it into the wheel before putting the airbag back on.

Genuine Volvo Steering Wheel

Navigation Steering Wheel

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

152 Steering Wheels found

View related parts

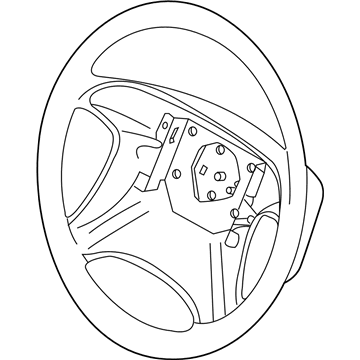

Volvo Steering Wheel, Off Black Part Number: 30884415
$146.88 MSRP: $173.41
You Save: $26.53 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S40 | 2000-2002 | Base | 4 Cyl 1.9 L GAS
- V40 | 2000-2002 | Base | 4 Cyl 1.9 L GAS
View related parts

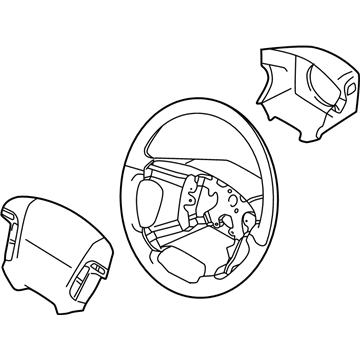

Volvo Steering Wheel, Gray Part Number: 8674602
$276.65 MSRP: $329.34
You Save: $52.69 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- C70 | 2001-2002 | Base | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- V70 | 2001-2002 | 2.4T, AWD, Base, T5, X/C | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- XC70 | 2003 | X/C | 5 Cyl 2.5 L GAS
View More
View related parts
Volvo Steering Wheel Part Number: 30884413
$300.35 MSRP: $357.56
You Save: $57.21 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S40 | 2000-2002 | Base | 4 Cyl 1.9 L GAS
- V40 | 2000-2002 | Base | 4 Cyl 1.9 L GAS
View related parts
Volvo Steering Wheel Part Number: 30620954
$302.62 MSRP: $360.25
You Save: $57.63 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S40 | 2003-2004 | Base, i, LSE, T5 | 4 Cyl 1.9 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- V40 | 2003-2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts
Volvo Steering Wheel Part Number: 30623968
$196.18 MSRP: $251.51
You Save: $55.33 (22%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S40 | 2001-2002 | Base | 4 Cyl 1.9 L GAS
- V40 | 2001-2002 | Base | 4 Cyl 1.9 L GAS
View related parts
Volvo Steering Wheel, Black Part Number: 30723532
$202.48 MSRP: $259.58
You Save: $57.10 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Steering Wheel 2512; Steering Wheel
Fits the following Volvo Models:
- S80 | 2007-2011 | 3.2, T6, V8 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
- V70 | 2008-2010 | 3.2 | 6 Cyl 3.2 L GAS
- XC60 | 2010 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC70 | 2008-2015 | 3.2, T5, T6 | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
View More
View related parts

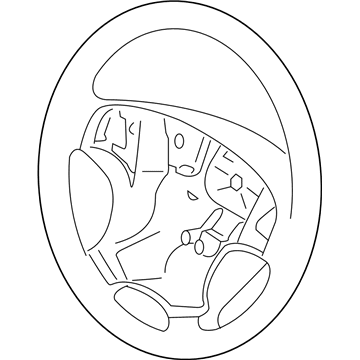

Volvo Steering Wheel, Black/Charcoal Part Number: 30741369
$368.10 MSRP: $438.22
You Save: $70.12 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S80 | 2007-2015 | 3.2, T6, V8 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
- V70 | 2008-2010 | 3.2 | 6 Cyl 3.2 L GAS
- XC60 | 2010-2016 | 3.2, T6, T6 Ocean Race, T6 Platinum, T6 Premier, T6 R-Design | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC70 | 2008-2016 | 3.2, T5, T5 Platinum, T5 Premier, T6 | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
View More
View related parts

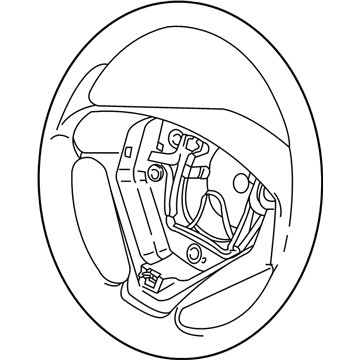

Volvo Steering Wheel Part Number: 8637171
$368.10 MSRP: $438.22
You Save: $70.12 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S60 | 2001-2004 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo Steering Wheel Part Number: 30623969
$269.69 MSRP: $345.75
You Save: $76.06 (22%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S40 | 2001-2002 | Base | 4 Cyl 1.9 L GAS
- V40 | 2001-2002 | Base | 4 Cyl 1.9 L GAS
View related parts

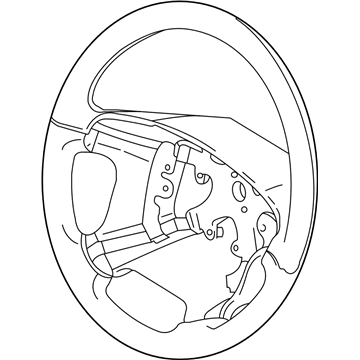

Volvo Steering Wheel, Oak Part Number: 30741602
$270.68 MSRP: $347.03
You Save: $76.35 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Steering Wheel 2511; Steering Wheel
Fits the following Volvo Models:
- S80 | 2003-2004 | 2.5T, 2.5T AWD, 2.9, T6 | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS
View related parts

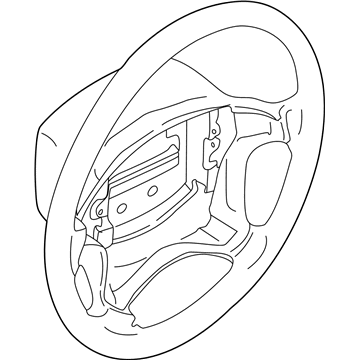

Volvo Steering Wheel, Gray Part Number: 8628367
$459.56 MSRP: $547.10
You Save: $87.54 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- C70 | 2003-2004 | Base | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- S70 | 1999-2000 | AWD, Base, GLT, GLT SE, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- V70 | 2003-2004, 1999-2000 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, GLT, GLT SE, R AWD, T5, X/C AWD, X/C AWD SE | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View More
View related parts
Volvo Steering Wheel, Red Part Number: 8674582
$471.98 MSRP: $561.89
You Save: $89.91 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S80 | 2003-2004 | 2.5T, 2.5T AWD, 2.9, T6 | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS
View related parts
Volvo Steering Wheel, Black/Oak Part Number: 8674603
$306.44 MSRP: $392.88
You Save: $86.44 (22%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- V70 | 2004, 2001-2002 | 2.5T, X/C | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- XC70 | 2003 | X/C | 5 Cyl 2.5 L GAS
View related parts

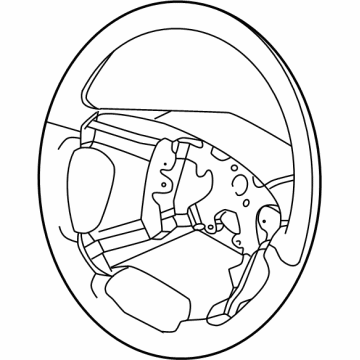

Volvo Steering Wheel, Brown Part Number: 30723498
$477.64 MSRP: $568.61
You Save: $90.97 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- XC90 | 2003-2014 | 2.5T, 3.2, 3.2 R-Design, Base, T6, V8, V8 Ocean Race, V8 Sport | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
View related parts
Volvo Steering Wheel Part Number: 30741600
$477.64 MSRP: $568.61
You Save: $90.97 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S80 | 2003-2004 | 2.5T, 2.5T AWD, 2.9, T6 | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS
View related parts
Volvo Steering Wheel, Beige Part Number: 30741604
$477.64 MSRP: $568.61
You Save: $90.97 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S80 | 2003-2004 | 2.5T, 2.5T AWD, 2.9, T6 | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS
View related parts
Volvo Steering Wheel Part Number: 30741632
$477.64 MSRP: $568.61
You Save: $90.97 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S80 | 1999-2002 | 2.9, T6 | 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS
View related parts
Volvo Steering Wheel, Beige Part Number: 30741633
$477.64 MSRP: $568.61
You Save: $90.97 (16%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S80 | 2000-2002 | 2.9, T6 | 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS
View related parts
Volvo Steering Wheel Part Number: 8698856
$310.19 MSRP: $397.67
You Save: $87.48 (22%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- V70 | 2006-2007 | 2.4, 2.5T | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- XC70 | 2006-2007 | Base, Ocean Race | 5 Cyl 2.5 L GAS
View related parts
Volvo Steering Wheel, Beige Part Number: 30741372
$314.26 MSRP: $402.89
You Save: $88.63 (22%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volvo Models:
- S80 | 2007-2015 | 3.2, T6, V8 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS

| Page 1 of 8 |Next >

1-20 of 152 Results

Volvo Steering Wheel Parts and Q&A

Steering Wheel
30643382
Q: How to remove and refit a steering wheel on Volvo V70?
A:
To remove the steering wheel, drive the car straight ahead and park the car with the front wheels straight ahead. Disconnect the battery negative lead and wait for 10 minutes. Place masking tape on the top of the steering wheel hub and steering column upper shroud and draw a line with a pencil across both - for alignment. Remove the airbag unit from the steering wheel, making sure that the steering wheel is straight before locking the rotary contact reel with a lower screw. Undo the steering wheel center retaining bolt and lift the wheel off the column shaft while passing the wiring and plastic strip through the hole. For refitting, be sure that the front wheels are straight ahead, pass the wiring through the steering wheel hole, attach the steering wheel with the column shaft, and align the marks made during removal and make sure the contact reel pegs fit in the recesses. Turning the steering wheel when the contact reel is locked to prevent damage. Refit steering wheel retaining bolt and make it finger tight and remove airbag contact reel locking screw and refit screw and plastic. Finally, tighten the steering wheel retaining bolt to the correct torque and reattach the airbag unit to the steering wheel.
Steering Wheel
30620954
Q: How to remove and refit the airbag from the steering wheel on Volvo V40?
A:
To take off the air bag, first place the front wheels straight ahead and run the steering lock. Next, loosen and take off the steering wheel retaining nut while holding the wheel rim to avoid only using the steering lock, which may damage the wheel rim. Mark alignment of the steering wheel and the steering column shaft. Then, take the locking screw off the plastic strip lock and lock it to the lug of the airbag contact unit by light tightening so that it does not rotate. Carefully remove the steering wheel from the column splines without damaging the wiring of the contact unit. To refit the indicator column, make sure that the switch column is in the central (off) position (to avoid breaking the switch tab), pass the contact unit wiring through the steering wheel center, seat the wheel on the column splines and make sure that it is aligned with the previously made marks. Refit the steering wheel retaining nut and tighten it to the specified torque. Finally, remove the locking screw on the contact unit lug, refit it to the plastic strip, and screw it into the wheel before putting the airbag back on.
