How to remove the lower shaft from the rack and pinion boot and steering shaft on Volvo V70?

To remove the lower shaft from the steering rack pinion, work in the engine compartment using a ratchet, socket, and several extension pieces to slacken and remove the pinch-bolt, discarding it and preparing to fit a new one. Next, undo the screws to take off the trim panel over the driver's pedals, then undo the pinch-bolt at the universal joint between the intermediate shaft and lower shaft, discarding the nut and pushing the intermediate shaft upwards into the upper column. Fold back the floor carpet and the top portion of the rubber boot at the base of the steering shaft, then prise out the locking ring from the lower portion of the rubber boot, removing the boot and bearing assembly along with the shaft. For refitting, engage the universal joint with the steering rack pinion shaft, ensuring it is fully seated and aligned with the groove on the pinion shaft, then refit and tighten the new pinch-bolt to the specified torque. Lubricate the needle bearing in the rubber boot with grease and the lower portion of the boot with soapy water, then fit the lower portion to the collar on the bulkhead for a good seal. Press the locking ring into position around the boot lower portion and the bulkhead, fold down the top portion of the boot to seal around the locking ring flange, and refit the carpet. Finally, reattach the intermediate shaft universal joint to the lower shaft, tightening the new pinch bolt nut to the specified torque, and replace the trim panel over the driver's pedals.

Genuine Volvo Steering Shaft

Steering Stem Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Steering Shafts found

View related parts

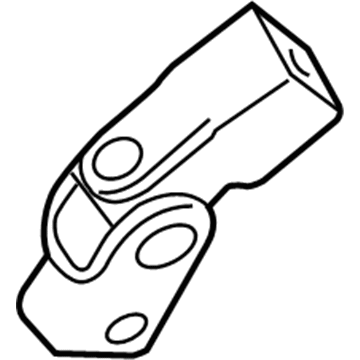

Volvo Lower Shaft Part Number: 8650236
$134.35 MSRP: $158.62
You Save: $24.27 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Steering Shaft; Lower Shaft
Fits the following Volvo Models:
- XC90 | 2003-2005 | 2.5T, Base, T6, V8 | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS, 8 Cyl 4.4 L GAS
View related parts

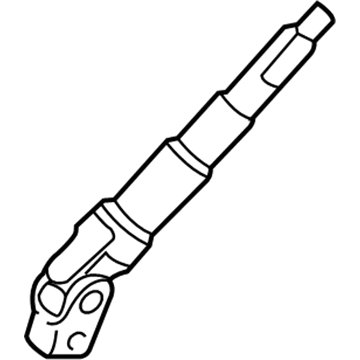

Volvo Lower Shaft Part Number: 30741950
$124.36 MSRP: $160.60
You Save: $36.24 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Steering Shaft; Lower Shaft
Fits the following Volvo Models:
- S60 | 2006-2009 | 2.5T, R, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- V70 | 2006-2007 | 2.4, 2.5T, R | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- XC70 | 2006-2007 | Base, Ocean Race | 5 Cyl 2.5 L GAS
View More
View related parts

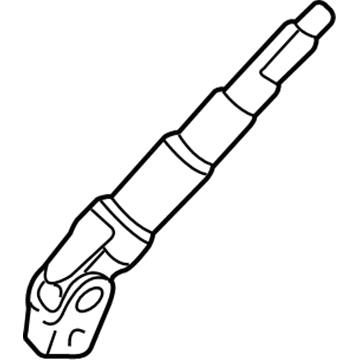

Volvo Lower Shaft Part Number: 3409939
$124.36 MSRP: $160.60
You Save: $36.24 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Steering Shaft; Lower Shaft
Fits the following Volvo Models:
- S60 | 2001-2006 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, R, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- S80 | 1999-2006 | 2.5T, 2.5T AWD, 2.9, T6, T6 Premier | 5 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS
- V70 | 2001-2005 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, R, T5, X/C | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- XC70 | 2003-2005 | Base, X/C | 5 Cyl 2.5 L GAS
View More
View related parts

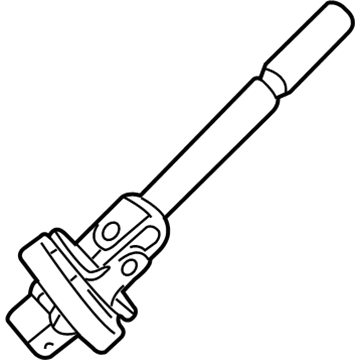

Volvo Upper Shaft Part Number: 36012863
$145.06 MSRP: $186.64
You Save: $41.58 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Countershaft; Steering Shaft; Upper Shaft
Fits the following Volvo Models:
- S60 | 2001-2009 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, R, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- S80 | 1999-2006 | 2.5T, 2.5T AWD, 2.9, T6, T6 Premier | 5 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS
- V70 | 2001-2006 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, R, T5, X/C | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- XC70 | 2003-2006 | Base, Ocean Race, X/C | 5 Cyl 2.5 L GAS
View More
View related parts
Volvo Shaft Assembly Part Number: 1359711
$242.17 MSRP: $312.89
You Save: $70.72 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Steering Shaft; Lower Shaft, Mainshaft, Shaft, Shaft Assembly
Fits the following Volvo Models:
- 740 | 1985-1991 | Base, GL, GLE, T | 4 Cyl 2.3 L GAS, 6 Cyl 2.4 L DIESEL
- 760 | 1984-1987 | Base, GLE | 4 Cyl 2.3 L GAS, 6 Cyl 2.4 L DIESEL, 6 Cyl 2.8 L GAS
- 780 | 1987-1991 | Base | 4 Cyl 2.3 L GAS, 6 Cyl 2.8 L GAS
- 940 | 1991 | GLE, SE, T | 4 Cyl 2.3 L GAS
View More

Volvo Steering Shaft

Volvo Steering Shaft each small twist of the wheel goes straight to the steering gear, adding crisp feedback as well as a telescoping function so it can absorb impact forces in a collision. Volvo began in Gothenburg in 1927 and ever since the brand has gained trust through its pioneering work on the three-point seat belt, its strong brakes and its penchant for clean design and simple controls that make every trip calm and focused. Volvo also takes the electrification road, emphasizing the testing of plug-in hybrids and electric powertrains that can lower emissions without sacrificing performance. These future-oriented characteristics combine with a heritage of making solid but comfortable cars, trucks and buses whose family-welcoming and commuter-friendly characteristics are why Volvo reliability is respected on city streets and long highways. The Steering Shaft is the centerpiece of that experience because it connects the steering wheel to the rack using finely machined splines and universal joints that maintain tight alignment even as the column avoids engine components. A solid rod provides strength and the slip joint allows the inner and outer tubes to telescope, limiting vibration and protecting the cabin in a crash. Regular cleaning and light lubrication ensure that the Steering Shaft retains its quick action so that every Volvo maintains its smooth, confident steering throughout its entire lineup. A well-kept Steering Shaft means response sharp for years.

Trust OEM Steering Shaft for quality that holds up. These parts use top-tier materials to keep your ride running smooth. Because they match exact Volvo specs, you get a flawless fit and a hassle-free install every single time. No more fighting with parts that just won't line up. It is easy to search our massive stock of genuine Volvo options at prices you will really like. Every part comes with a real manufacturer's warranty and a simple return policy. Plus, we ship fast to get your order to you. Shop with confidence and give your Volvo the reliability it deserves.

Volvo Steering Shaft Parts and Q&A

Lower Shaft
30741950
Q: How to remove the lower shaft from the rack and pinion boot and steering shaft on Volvo V70?
A:
To remove the lower shaft from the steering rack pinion, work in the engine compartment using a ratchet, socket, and several extension pieces to slacken and remove the pinch-bolt, discarding it and preparing to fit a new one. Next, undo the screws to take off the trim panel over the driver's pedals, then undo the pinch-bolt at the universal joint between the intermediate shaft and lower shaft, discarding the nut and pushing the intermediate shaft upwards into the upper column. Fold back the floor carpet and the top portion of the rubber boot at the base of the steering shaft, then prise out the locking ring from the lower portion of the rubber boot, removing the boot and bearing assembly along with the shaft. For refitting, engage the universal joint with the steering rack pinion shaft, ensuring it is fully seated and aligned with the groove on the pinion shaft, then refit and tighten the new pinch-bolt to the specified torque. Lubricate the needle bearing in the rubber boot with grease and the lower portion of the boot with soapy water, then fit the lower portion to the collar on the bulkhead for a good seal. Press the locking ring into position around the boot lower portion and the bulkhead, fold down the top portion of the boot to seal around the locking ring flange, and refit the carpet. Finally, reattach the intermediate shaft universal joint to the lower shaft, tightening the new pinch bolt nut to the specified torque, and replace the trim panel over the driver's pedals.
