Question 1

How to remove and refit the front roadwheel with a Tie Rod End on Volvo S70?

Accepted Answer

To remove the front roadwheel, loosen the correct bolts on the front wheels, chock the rear wheels, jack up the front of the vehicle and use axle stands to support the vehicle, and remove the roadwheel. Next, counter hold the tie rod and slacken tie rod end locknut half a turn which will be used as a guide for refitting. Unscrew the tie rod end ballpin nut, and then separate the ballpin from the steering arm using a proprietary balljoint separator, take off the nut, and separate the ballpin from the steering arm. Unscrew the tie rod end from the tie rod, recording the number of turns to reset the tracking. For refitting, screw the tie rod end on to the tie rod the same number of turns recorded during the removal, engage the ballpin in the steering arm, adjust a new nut and tighten it to the recommended torque. Counter hold the tie rod and tighten the locknut, refit the front wheel, lower the car and tighten the wheel bolts in a diagonal order to specified torque. Finally, have the toe-in of the front wheel checked and adjusted by a Volvo dealer.

Question 2

How to remove and refit the Tie Rod End on the front wheel on Volvo V70?

Accepted Answer

In order to remove the front wheel, it is necessary to firstly loosen the appropriate bolts, then chock the rear wheels, jack up the front of the vehicle and support it on axle stands before removing the roadwheel. Next counterhold the tie rod and slacken the tie rod end locknut by half a turn to act as a guide for refitting. Unscrew the tie rod end balljoint nut and separate balljoint from steering arm using proprietary balljoint separator, remove the balljoint nut and disengage the balljoint from the steering arm while holding the tie rod end balljoint with a second spanner. Unscrew the tie rod end from the tie rod, counting the number of turns on the tie rod for later use to reset the tracking. For refitting, screw the tie rod end on the tie rod with as many turns as noted when it was removed, snap the balljoint in the steering arm, place a new nut, and tighten it to the torque. Counterhold the tie rod and tighten the locknut, refit the front wheel, lower the car and tighten wheel bolts in a diagonal sequence to specified torque. Finally, have the toe in of the front wheel checked and adjusted by a Volvo dealer or suitably-equipped repairer.

Genuine Volvo Tie Rod End

3 Tie Rod Ends found

Volvo Tie Rod End, Driver Side Part Number: 271598

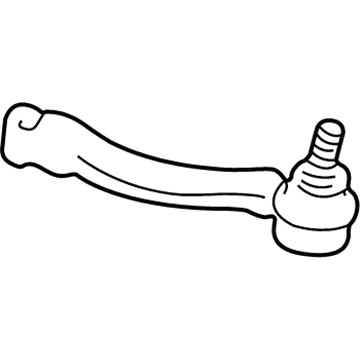

Volvo Tie Rod End, Passenger Side Part Number: 271599

Volvo Tie Rod Part Number: 3516944
