How should a Transmission Control Module be fitted and programmed on Volvo S40?

If a new control module is fitted, it has to be programmed on dedicated Volvo test equipment so it is advisable to trust this task to a Volvo dealer or suitably-equipped specialist. To start the removal, turn off the ignition and wait at least 2 minutes before disconnecting the battery negative lead to make sure that any remaining electrical energy has dissipated. If the cooling fan keeps on running even after turning off the ignition, wait until the fan stops and then wait for another minute before removing the battery lead. Next, remove the air cleaner assembly. The Transmission Control Module (TCM): Located on the top of the transmission casing, disconnect the wiring plugs from the TCM (take care to avoid touching the control module terminal pins with the bare hands to cause damage to the component from static electricity). Undo the retaining bracket screw and remove the bracket to the right hand side of TCM. For models whose transmission is TF-80SC, undo the 2 bolts and take off the cable guide next to the TCM. Then, undo 3 retaining bolts and lever retaining nut, pull the lever off the spindle and remove the TCM. For refitting, make sure to place the gear selector in the neutral position and also make sure that you locate the TCM in position while ensuring that the arrows on the lever spindle and the TCM casing match their position and refit the TCM retaining bolts and the retaining bracket, and make sure to tighten it securely. Refit the lever and tighten the retaining nut securely, refit the wiring plugs and refit the air cleaner assembly. At the last, reconnect the negative lead of the battery.

How should a Transmission Control Module be fitted and programmed on Volvo V70?

If a new control module is fitted, it must be programmed using dedicated Volvo test equipment, and this task should be entrusted to a Volvo dealer or a suitably-equipped specialist. The transmission control module (TCM) and the engine management ECM are located in the ECM box at the front right-hand side of the engine compartment. Begin by disconnecting the battery negative terminal and wait at least two minutes for any residual energy to dissipate from the main system relay. For four and five-speed transmissions, clean the top of the ECM box lid to prevent debris from falling inside, release the catch on the side of the ECM module box lid, and lift it off. To remove the TCM, use Volvo tool No 999 5722 or a homemade equivalent to push the top of the tool rearwards and pull the module upwards, taking care not to touch the control module terminal pins with bare hands due to the risk of static electricity. For six-speed transmissions, the TCM is located on the top of the transmission casing; remove the air cleaner assembly, disconnect the wiring plug from the TCM, undo the nut securing the selector lever to the shaft, and pull the lever upwards before removing the TCM by undoing three bolts. When refitting for four and five-speed transmissions, locate the TCM in the box, engage it with the connector, and use the tool to slide the connector rearwards before refitting the ECM box lid and reconnecting the battery negative lead. For six-speed transmissions, ensure the selector lever is in the neutral position, refit the TCM ensuring the arrows on the shaft and TCM align, tighten the retaining screws, refit the lever to the shaft, reconnect the wiring plug, refit the air cleaner assembly, and reconnect the battery negative lead.

Genuine Volvo Transmission Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Transmission Control Modules found

View related parts

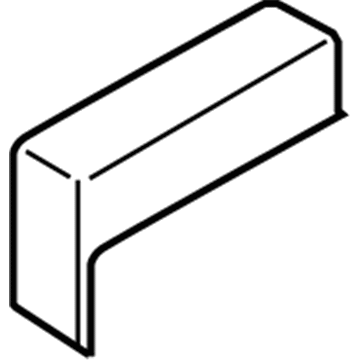

Volvo Control Module Part Number: 9480761
$599.58 MSRP: $725.88
You Save: $126.30 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Control Module, Module, Transmission Controller
Fits the following Volvo Models:
- C70 | 2003-2004 | Base | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- S60 | 2001-2004 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, R, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- S80 | 2001-2004 | 2.9 | 6 Cyl 2.9 L GAS
- V70 | 2001-2004 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, R, T5, X/C | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- XC70 | 2003-2004 | Base, X/C | 5 Cyl 2.5 L GAS
- XC90 | 2003-2004 | 2.5T, Base, T6 | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS
View More
View related parts

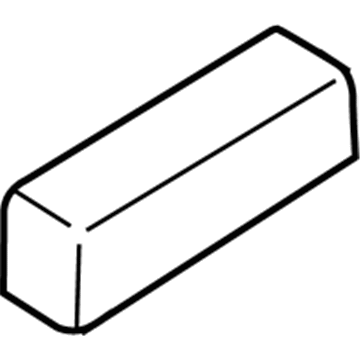

Volvo Control Module Part Number: 9472349
$590.72 MSRP: $782.20
You Save: $191.48 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Control Module, ECM, Transmission Controller
Fits the following Volvo Models:
- C70 | 1999-2004 | Base | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- S70 | 1999-2000 | AWD, Base, GLT, GLT SE, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- S80 | 1999-2006 | 2.5T, 2.5T AWD, 2.9, T6 | 5 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS
- V70 | 1999-2000 | AWD, Base, GLT, GLT SE, R AWD, T5, X/C AWD, X/C AWD SE | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
View More
View related parts

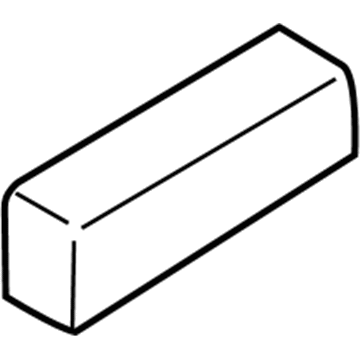

Volvo Control Module Part Number: 30735493
$945.14 MSRP: $1251.52
You Save: $306.38 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module
Fits the following Volvo Models:
- S60 | 2005-2009 | 2.4, 2.5T, 2.5T AWD, R, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- S80 | 2005-2006 | 2.5T, 2.5T AWD, T6, T6 Premier | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS
- V70 | 2005-2007 | 2.4, 2.5T, R, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- XC70 | 2005-2007 | Base, Ocean Race | 5 Cyl 2.5 L GAS
- XC90 | 2005-2006 | 2.5T | 5 Cyl 2.5 L GAS
View More
View related parts
Volvo Transmission Controller Part Number: 30644070
$453.91 MSRP: $540.37
You Save: $86.46 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- S40 | 2004 | Base, i, LSE, T5 | 4 Cyl 1.9 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- V40 | 2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts
Volvo Transmission Controller Part Number: 30613923
$575.87 MSRP: $685.56
You Save: $109.69 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- S40 | 2000 | Base | 4 Cyl 1.9 L GAS
- V40 | 2000 | Base | 4 Cyl 1.9 L GAS
View related parts
Volvo Transmission Controller Part Number: 30613989
$575.87 MSRP: $685.56
You Save: $109.69 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- S40 | 2001-2003 | Base | 4 Cyl 1.9 L GAS
- V40 | 2001-2003 | Base | 4 Cyl 1.9 L GAS
View related parts
Volvo Transmission Controller Part Number: 30735494
$599.58 MSRP: $725.88
You Save: $126.30 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- XC90 | 2005 | T6 | 6 Cyl 2.9 L GAS
View related parts
Volvo Transmission Controller Part Number: 31437048
$590.72 MSRP: $782.20
You Save: $191.48 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
- Replaces: 31331243
Fits the following Volvo Models:
- S60 | 2015-2018 | Polestar, T5, T5 Dynamic, T5 Inscription, T5 Inscription Platinum, T5 Inscription Premier, T5 Platinum, T5 Premier, T5 Premier Plus, T5 R-Design Special Edition, T6, T6 Platinum, T6 Premier Plus, T6 R-Design Platinum | 4 Cyl 2.0 L GAS
- S60 Cross Country | 2017-2018 | T5 | 4 Cyl 2.0 L GAS
- S80 | 2015-2016 | T5, T5 Platinum | 4 Cyl 2.0 L GAS
- V60 | 2015-2018 | Polestar, T5, T5 Dynamic, T5 Platinum, T5 Premier, T5 Premier Plus, T6 R-Design, T6 R-Design Platinum | 4 Cyl 2.0 L GAS
- XC60 | 2015-2017 | T5, T5 Dynamic, T5 Inscription, T5 Platinum, T5 Premier, T6, T6 Dynamic, T6 Inscription, T6 Ocean Race, T6 Platinum, T6 Premier, T6 R-Design | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS
- XC70 | 2015-2016 | T5, T5 Platinum, T5 Premier | 4 Cyl 2.0 L GAS
View More
View related parts
Volvo Transmission Controller Part Number: 30735596
$850.63 MSRP: $1126.36
You Save: $275.73 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- S40 | 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- V50 | 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo Transmission Controller Part Number: 30735597
$850.63 MSRP: $1126.36
You Save: $275.73 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- XC90 | 2005-2014 | 3.2, 3.2 R-Design, V8, V8 Ocean Race, V8 Sport | 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
View related parts
Volvo Transmission Controller Part Number: 30751946
$850.63 MSRP: $1126.36
You Save: $275.73 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- S60 | 2011 | T6 | 6 Cyl 3.0 L GAS
- S80 | 2008-2010 | 3.2, T6, V8 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
- V70 | 2008-2010 | 3.2 | 6 Cyl 3.2 L GAS
- XC60 | 2010 | 3.2, T6, T6 R-Design | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC70 | 2008-2010 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
View More
View related parts
Volvo Transmission Controller Part Number: 31312609
$850.63 MSRP: $1126.36
You Save: $275.73 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- S60 | 2012-2016 | T6, T6 Polestar, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS
- S80 | 2011-2015 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- V60 | 2015-2016 | T5, T5 Platinum, T5 Premier, T5 Premier Plus, T6 Polestar, T6 R-Design, T6 R-Design Platinum | 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
- XC60 | 2011-2016 | 3.2, 3.2 R-Design, T5, T6, T6 Ocean Race, T6 Platinum, T6 Premier, T6 R-Design, T6 R-Design Platinum | 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC70 | 2011-2016 | T5, T5 Platinum, T5 Premier, T6 | 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
View More
View related parts
Volvo Transmission Controller Part Number: 32240939
$945.14 MSRP: $1251.52
You Save: $306.38 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- S90 | 2022 | B6 Inscription, B6 Momentum, B6 R-Design | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- V90 Cross Country | 2022 | B6 | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- XC40 | 2023 | B4 Plus, B4 Ultimate, B5 Core, B5 Plus, B5 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- XC60 | 2022-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, B6 Inscription, B6 Momentum, B6 R-Design, B6 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- XC90 | 2023 | B5 Core, B5 Plus, B6 Core, B6 Plus, B6 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View More
View related parts
Volvo Transmission Controller Part Number: 32249308
$945.14 MSRP: $1251.52
You Save: $306.38 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
- Replaces: 31380617
Fits the following Volvo Models:
- S60 | 2019-2023 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Polestar, T8 R-Design, T8 Recharge Inscription, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge R-Design Expression | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- S90 | 2017-2021 | T5 Inscription, T5 Momentum, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Momentum, T8 R-Design, T8 Recharge Inscription, T8 Recharge R-Design | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 | 2019-2021 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Polestar, T8 Recharge Polestar | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 Cross Country | 2020-2021 | T5 | 4 Cyl 2.0 L GAS
- V90 | 2018-2021 | T5 Inscription, T5 R-Design, T6 Inscription, T6 R-Design | 4 Cyl 2.0 L GAS
- V90 Cross Country | 2017-2021 | T5, T6, T6 Ocean Race | 4 Cyl 2.0 L GAS
- XC40 | 2019-2022 | T4 Inscription, T4 Momentum, T4 R-Design, T5 Inscription, T5 Momentum, T5 R-Design | 4 Cyl 2.0 L GAS
- XC60 | 2018-2022 | B5 Inscription, B5 Momentum, B5 R-Design, B6 Inscription, B6 Momentum, B6 R-Design, T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Momentum, T8 Polestar, T8 R-Design, T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge Polestar, T8 Recharge R-Design | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- XC90 | 2016-2023 | T5 Inscription, T5 Momentum, T5 R-Design, T6 First Edition, T6 Inscription, T6 Momentum, T6 R-Design, T8 Excellence, T8 Inscription, T8 Momentum, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge Plus, T8 Recharge R-Design, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts
Volvo Transmission Controller Part Number: 32249605
$945.14 MSRP: $1251.52
You Save: $306.38 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
- Replaces: 31367945
Fits the following Volvo Models:
- S60 | 2021 | T8 Recharge Inscription, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge R-Design Expression | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- XC90 | 2023 | T8 Recharge Core, T8 Recharge Plus, T8 Recharge Ultimate | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Volvo Transmission Controller Part Number: 9480760
$1260.20 MSRP: $1668.70
You Save: $408.50 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- XC90 | 2004 | T6 | 6 Cyl 2.9 L GAS
View related parts
Volvo Valve Body Part Number: 31492785
$1654.01 MSRP: $2190.16
You Save: $536.15 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control System; Transmission Control Module; Transmission Controller, Valve Body
Fits the following Volvo Models:
- S60 | 2022 | B5 Inscription, B5 Momentum | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- S90 | 2022 | B6 Inscription, B6 Momentum, B6 R-Design | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- V90 Cross Country | 2022 | B6 | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- XC40 | 2023 | B4 Plus, B4 Ultimate, B5 Core, B5 Plus, B5 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- XC90 | 2023 | B5 Core, B5 Plus, B6 Core, B6 Plus, B6 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View More
View related parts
Volvo Transmission Controller Part Number: 30759364
Product Specifications
- Other Name: Control Unit; Transmission Control Module; Transmission Controller
Fits the following Volvo Models:
- S80 | 2007 | 3.2, V8 | 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS

Volvo Transmission Control Module Parts and Q&A

Transmission Controller
30613923
Q: How should a Transmission Control Module be fitted and programmed on Volvo S40?
A:
If a new control module is fitted, it has to be programmed on dedicated Volvo test equipment so it is advisable to trust this task to a Volvo dealer or suitably-equipped specialist. To start the removal, turn off the ignition and wait at least 2 minutes before disconnecting the battery negative lead to make sure that any remaining electrical energy has dissipated. If the cooling fan keeps on running even after turning off the ignition, wait until the fan stops and then wait for another minute before removing the battery lead. Next, remove the air cleaner assembly. The Transmission Control Module (TCM): Located on the top of the transmission casing, disconnect the wiring plugs from the TCM (take care to avoid touching the control module terminal pins with the bare hands to cause damage to the component from static electricity). Undo the retaining bracket screw and remove the bracket to the right hand side of TCM. For models whose transmission is TF-80SC, undo the 2 bolts and take off the cable guide next to the TCM. Then, undo 3 retaining bolts and lever retaining nut, pull the lever off the spindle and remove the TCM. For refitting, make sure to place the gear selector in the neutral position and also make sure that you locate the TCM in position while ensuring that the arrows on the lever spindle and the TCM casing match their position and refit the TCM retaining bolts and the retaining bracket, and make sure to tighten it securely. Refit the lever and tighten the retaining nut securely, refit the wiring plugs and refit the air cleaner assembly. At the last, reconnect the negative lead of the battery.
Control Module
30735493
Q: How should a Transmission Control Module be fitted and programmed on Volvo V70?
A:
If a new control module is fitted, it must be programmed using dedicated Volvo test equipment, and this task should be entrusted to a Volvo dealer or a suitably-equipped specialist. The transmission control module (TCM) and the engine management ECM are located in the ECM box at the front right-hand side of the engine compartment. Begin by disconnecting the battery negative terminal and wait at least two minutes for any residual energy to dissipate from the main system relay. For four and five-speed transmissions, clean the top of the ECM box lid to prevent debris from falling inside, release the catch on the side of the ECM module box lid, and lift it off. To remove the TCM, use Volvo tool No 999 5722 or a homemade equivalent to push the top of the tool rearwards and pull the module upwards, taking care not to touch the control module terminal pins with bare hands due to the risk of static electricity. For six-speed transmissions, the TCM is located on the top of the transmission casing; remove the air cleaner assembly, disconnect the wiring plug from the TCM, undo the nut securing the selector lever to the shaft, and pull the lever upwards before removing the TCM by undoing three bolts. When refitting for four and five-speed transmissions, locate the TCM in the box, engage it with the connector, and use the tool to slide the connector rearwards before refitting the ECM box lid and reconnecting the battery negative lead. For six-speed transmissions, ensure the selector lever is in the neutral position, refit the TCM ensuring the arrows on the shaft and TCM align, tighten the retaining screws, refit the lever to the shaft, reconnect the wiring plug, refit the air cleaner assembly, and reconnect the battery negative lead.
