How to remove and refit the right-hand engine mounting on Volvo S40?

To remove the engine on the right hand side, only, support the engine with a cross-beam or use a trolley jack with a block of wood to prevent the damage while removing the engine weight. Lift coolant expansion tank and set it over engine with no hosing connections. Mark the location of the mounting bracket on the inside wing and then release the screws holding the mounting bracket in place on the inside wing and engine. For the left hand mounting, remove the engine/transmission undershield by undoing 7 Torx screws and support the transmission with a trolley jack (again using a piece of wood to avoid damage). Remove the battery and its tray, the connector is released during its removal, and the air cleaner assembly. Undo 4 nuts and 2 bolts to remove mounting plate followed by the undoing of the centre bolt to remove the mounting pad. For the lower torque rod, undo the 7 Torx screws to remove the engine undershield, and then undo 2 bolts to remove the torque rod. To refit, reverse the removal operations and be sure to tighten all fastenings to the recommended torque.

Do Engine Mounts Require Frequent Attention, and What Steps Should Be Taken if They Are Broken or Deteriorated on Volvo S40?

The engine/transmission mountings are not usually in need of regular attention but any mountings which are broken or deteriorated should be replaced immediately to avoid damage or wearing of the driveline components. While individual mountings can be removed and refitted, if more than one mounting is disturbed at a time they must be reassembled and their fasteners made tight in the positions marked during their removal. On reassembly, the entire engine/transmission unit weight should not be supported on the mountings until all are correctly positioned with respect to the marks made during removal and the mounting fasteners should be adjusted to specified torque settings. When inspecting it is recommended that the engine/transmission unit is raised slightly to take the weight off mountings, the vehicle should be supported on axle stands. A jack with a block of wood should be placed under the sump to carefully raise the engine/transmission. The mountings should be examined for any cracks, hardened rubber, or separation from metal components and any relative movement between the mounting brackets and engine/transmission or body should be evaluated. If there is movement detected, the engine should be lowered and the mounting fasteners should be checked and tightened. In the case of renewal, the engine should be supported beneath sump. The mounting method for the right hand mounting is to pull the plastic cover upward, pull the coolant expansion tank aside without disconnecting the coolant pipe, indicate the mounting position, unclip the refrigerant pipe, unscrew the locking nuts and retaining bolts, and pull out the mounting. Upon refitting, all fasteners should be tightened to stated torque settings, beginning with the locking nuts to the engine casing. The left hand mounting requires taking off the air cleaner assembly, battery and battery tray after disconnecting any wiring, marking the mounting position, unscrewing the central retaining screw and dismantling the mounting from the bracket. During refitting, self-locking nuts should be replaced, as well as ensuring all fasteners are tightened to the recommended torque settings. The rear mounting or roll restrictor requires to be unbolted from the subframe and transmission by unscrewing the bolts at the center of the mounting, and in refitting the bolts should be screwed tightly in accordance with the specified torque settings.

Genuine Volvo S40 Engine Mount

Engine Motor Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

29 Engine Mounts found

View related parts
Volvo S40 Engine Cradle Front Bushing Part Number: 30666040
$21.06 MSRP: $31.38
You Save: $10.32 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing; Axle Beam Mount; Engine Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2004-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo S40 Engine Cradle Rear Bushing Part Number: 30666845
$21.06 MSRP: $31.38
You Save: $10.32 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing; Axle Beam Mount; Engine Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2004-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo S40 Side Bracket Part Number: 30854084
$55.11 MSRP: $64.53
You Save: $9.42 (15%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Bracket; Engine Mount; Side Bracket
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2000 | Base | 4 Cyl 1.9 L GAS
View related parts
Volvo S40 Side Mount Part Number: 30611465
$58.55 MSRP: $68.56
You Save: $10.01 (15%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Bracket; Engine Mount; Bracket, Side Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2001-2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts
Volvo S40 Transmission Mount Part Number: 30680783
$58.55 MSRP: $68.56
You Save: $10.01 (15%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gearbox Attachment; Engine Mount; Mount Bracket, Transmission Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2006 | 2.4i, i, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo S40 Side Mount Part Number: 30611143
$60.84 MSRP: $71.24
You Save: $10.40 (15%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Bracket; Engine Mount; Bracket, Side Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2000-2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts
Volvo S40 Rear Bracket Part Number: 30814383
$69.45 MSRP: $82.00
You Save: $12.55 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Bracket; Engine Mount; Bracket, Rear Bracket
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2000-2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts
Volvo S40 Side Bracket Part Number: 30613895
$74.02 MSRP: $87.38
You Save: $13.36 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Bracket; Engine Mount; Bracket, Side Bracket
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2000-2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts
Volvo S40 Front Bracket Part Number: 8642201
$75.14 MSRP: $88.72
You Save: $13.58 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Bracket; Engine Mount; Bracket, Front Bracket
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2000-2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts
Volvo S40 Front Mount Part Number: 30630070
$129.77 MSRP: $153.22
You Save: $23.45 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Mounting; Axle Beam Mount; Front Mount, Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2000-2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts
Volvo S40 Side Mount, Passenger Side Part Number: 31262676
$154.31 MSRP: $231.88
You Save: $77.57 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Mounting; Engine Mount, Right; Axle Beam Mount; Mount, Side Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2004-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo S40 Transmission Mount, Driver Side Part Number: 31316498
$162.45 MSRP: $244.10
You Save: $81.65 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Pad; Engine Mount, Left, Left Upper; Axle Beam Mount; Mount, Side Mount, Transmission Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2007-2011 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo S40 Side Mount, Driver Side Part Number: 31359779
$162.45 MSRP: $244.10
You Save: $81.65 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Pad; Transmission Mount; Axle Beam Mount; Mount, Side Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2004-2006 | 2.4i, i, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo S40 Side Mount Part Number: 30867130
$21.07 MSRP: $28.08
You Save: $7.01 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Bracket; Axle Beam Mount; Engine Mount; Bracket, Mount, Side Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2000 | Base | 4 Cyl 1.9 L GAS
View related parts

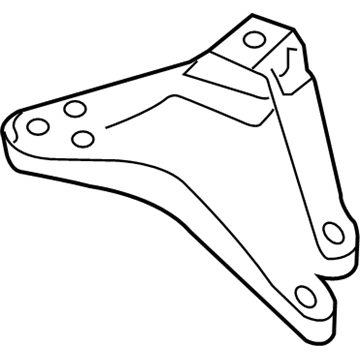

Volvo S40 Transmission Mount, Driver Side Part Number: 30680782
$67.09 MSRP: $86.64
You Save: $19.55 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gearbox Attachment; Engine Mount; Mount Bracket, Transmission Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2004-2006 | 2.4i, i, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo S40 Transmission Mount Part Number: 30778793
$67.09 MSRP: $86.64
You Save: $19.55 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gearbox Attachment; Engine Mount; Mount Bracket, Transmission Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2007-2008 | 2.4i, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo S40 Transmission Mount, Driver Side Part Number: 30778794
$67.09 MSRP: $86.64
You Save: $19.55 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gearbox Attachment; Engine Mount; Mount Bracket, Transmission Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2007-2011 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo S40 Transmission Mount Part Number: 30793552
$67.09 MSRP: $86.64
You Save: $19.55 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gearbox Attachment; Engine Mount; Mount Bracket, Transmission Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2007-2010 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts

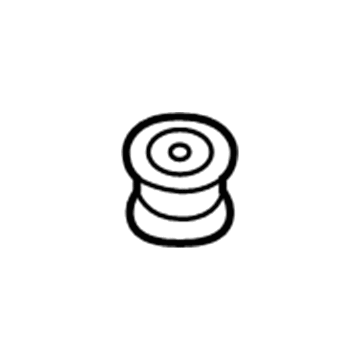

Volvo S40 Engine Cradle Bushing Part Number: 30714550
$40.19 MSRP: $47.05
You Save: $6.86 (15%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing; Axle Beam Mount; Engine Mount; Bushings, Engine Cradle Bushing
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2010 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo S40 Rear Mount Part Number: 8646206
$173.86 MSRP: $224.51
You Save: $50.65 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Mounting; Axle Beam Mount; Mount, Rear Mount
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2010 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS

| Page 1 of 2 |Next >

1-20 of 29 Results

Volvo S40 Engine Mount

Volvo S40 Engine Mount provides a stable position for the powerplant in the sedan and absorbs vibrations, providing drivers with a peaceful interior and preventing stress on parts. The core mission of the mount is twofold. They attach the engine and transaxle to the chassis so that nothing moves around during acceleration or cornering, as well as isolate the hum and shake that can be normal with combustion. Initial designs were based on the traditional layout of twin metal brackets with a thick rubber block, which was a basic method that provided reliable damping. As time went by Volvo came up with hydraulic styles in which a closed fluid chamber is added to allow the rubber cushion to be more effective in noise reduction, with the liquid restraining large movements; this is a clear advancement in comfort without affecting stability. Volvo installs these options in its lineup today, and on select trims the brand uses electronically controlled active mounts, which remain soft when idle and become firm as revs rise but use sensors and internal mechanisms to provide the optimal balance between smoothness and support. To S40 cars this development translates to fewer vibrations at a stoplight and a planted feel on the highway. Construction varies, but every Engine Mount is subject to the same wear and tear, with rubber becoming slack because of heat and oil; fluid-filled units are prone to leakage, and active units can fail if their control circuit or source of vacuum fails. Frequent visual inspections and minor prying under the powertrain spot cracks, separation, or seepage, allowing a new Engine Mount to be fitted before the shakes become worse. The owners of Volvo are aware that the alignment of the drivetrain depends on this element.

OEM parts are the only choice for top quality and real functionality. They pass strict checks, and they match Volvo's factory specs, so installation is easy. If you need new Engine Mount and you want quality and fit. You will find both here. Our site has a wide range of OEM Volvo S40 parts. The prices are unbeatable, allowing you to get value for money. Each genuine S40 Engine Mount comes with the manufacturer's warranty. That gives you peace of mind. We ship fast to your door. Order today, and enjoy a smooth, no-hassle upgrade with parts that fit right.

Volvo S40 Engine Mount Parts and Q&A

Side Mount
30611465
Q: How to remove and refit the right-hand engine mounting on Volvo S40?
A:
To remove the engine on the right hand side, only, support the engine with a cross-beam or use a trolley jack with a block of wood to prevent the damage while removing the engine weight. Lift coolant expansion tank and set it over engine with no hosing connections. Mark the location of the mounting bracket on the inside wing and then release the screws holding the mounting bracket in place on the inside wing and engine. For the left hand mounting, remove the engine/transmission undershield by undoing 7 Torx screws and support the transmission with a trolley jack (again using a piece of wood to avoid damage). Remove the battery and its tray, the connector is released during its removal, and the air cleaner assembly. Undo 4 nuts and 2 bolts to remove mounting plate followed by the undoing of the centre bolt to remove the mounting pad. For the lower torque rod, undo the 7 Torx screws to remove the engine undershield, and then undo 2 bolts to remove the torque rod. To refit, reverse the removal operations and be sure to tighten all fastenings to the recommended torque.
Side Mount
30611143
Q: Do Engine Mounts Require Frequent Attention, and What Steps Should Be Taken if They Are Broken or Deteriorated on Volvo S40?
A:
The engine/transmission mountings are not usually in need of regular attention but any mountings which are broken or deteriorated should be replaced immediately to avoid damage or wearing of the driveline components. While individual mountings can be removed and refitted, if more than one mounting is disturbed at a time they must be reassembled and their fasteners made tight in the positions marked during their removal. On reassembly, the entire engine/transmission unit weight should not be supported on the mountings until all are correctly positioned with respect to the marks made during removal and the mounting fasteners should be adjusted to specified torque settings. When inspecting it is recommended that the engine/transmission unit is raised slightly to take the weight off mountings, the vehicle should be supported on axle stands. A jack with a block of wood should be placed under the sump to carefully raise the engine/transmission. The mountings should be examined for any cracks, hardened rubber, or separation from metal components and any relative movement between the mounting brackets and engine/transmission or body should be evaluated. If there is movement detected, the engine should be lowered and the mounting fasteners should be checked and tightened. In the case of renewal, the engine should be supported beneath sump. The mounting method for the right hand mounting is to pull the plastic cover upward, pull the coolant expansion tank aside without disconnecting the coolant pipe, indicate the mounting position, unclip the refrigerant pipe, unscrew the locking nuts and retaining bolts, and pull out the mounting. Upon refitting, all fasteners should be tightened to stated torque settings, beginning with the locking nuts to the engine casing. The left hand mounting requires taking off the air cleaner assembly, battery and battery tray after disconnecting any wiring, marking the mounting position, unscrewing the central retaining screw and dismantling the mounting from the bracket. During refitting, self-locking nuts should be replaced, as well as ensuring all fasteners are tightened to the recommended torque settings. The rear mounting or roll restrictor requires to be unbolted from the subframe and transmission by unscrewing the bolts at the center of the mounting, and in refitting the bolts should be screwed tightly in accordance with the specified torque settings.
