How to remove and install a Cooling Fan Assembly on a belt-driven type fan on Volvo 740?

To remove and install the belt-driven type fan, first remove the negative battery cable then remove the top section of the tan shroud if applicable. Loosen the adjusting bolts to slacken the drive belts followed by remove the tan mounting bolts and fan assembly. For installation, the engine fan should be placed back, the tan mounting bolts should be tightened, the drive belt(s) should be adjusted to the specified tension, the top half of the fan shroud should be reinstalled if removed, and the negative battery cable should be reconnected. For models with electric cooling fans, the fan is operated by a thermocontact or thermal switch, usually kicking in when coolant temperatures reach between 190-212deg F. (88-100degC). B6304F engines have a fully electric radiator fan which is controlled by a relay reacting to temperature conditions or pressure switches in the A/C circuit, the relay being mounted in front of the battery. For models without 850/C70/S70/V70, disconnect both battery cables, remove the battery holder if required and disconnect the harness connector on the crossmember. Undo the relay and take off the ground lead and then the tan shroud if necessary, then the cooling fan mounting bolts to remove the fan assembly. For installation, put the fan assembly back, tighten the mounting bolts, reinstall the fan shroud, reconnect the ground lead and relay connector, attach the cross member connector, reinstall the battery holder, reconnect the battery cables, and start the engine and check the cooling fan operation. For 850/C70/S70/V70 models, remove the negative battery cable, remove the retaining bolts on the relay holder from the radiator, remove the control module and air intake hoses, and remove the four tan mounting bolts. Pull the fan up, unplug the relay and tan connectors and remove the tan from the vehicle. To install, put the fan back in the engine compartment, attach the relay and connectors, tighten the retaining bolts, reinstall the air hoses and secure the relay holder and reconnect the negative battery cable.

How is the Cooling Fan Assembly controlled and what steps should be taken if it is not functioning properly on Volvo V40?

The cooling fan is regulated by the engine management ECU via the cooling fan relay, based on input from the coolant temperature sensor, and possibly the air conditioning system pressure switch. If a fan is not operating when the engine is running fine, the problem may be with the cooling fan relay or motor. A bad ECU or temperature sensor will usually cause a rough running engine and may cause the engine management light to illuminate. To check the motor, unplug the wiring connector and use a 12 volt supply directly. For the cooling fan relay replacement with a known working relay is recommended. For non-turbo models, disconnect the battery negative terminal and then disconnect the wiring connector from the fan motor and unclip the wiring/hoses from the fan shroud. If necessary, jack up the front of the car to get access, remove the engine/transmission undershield and unbolt the fan shroud off of the radiator, then maneuvering the fan assembly out. For models with air conditioning, unbolt the fan assembly from the radiator, remove the radiator and then pull out the cooling fan. Disconnecting wiring connector and unbolting fan shroud from the radiator as the auxiliary cooling fan requires. For turbo models support the engine/transmission with a hoist, remove headlight access covers, disconnect hoses and wiring and then remove the fan assembly ensuring correct reassembly and torque upon refitting.

Genuine Volvo Cooling Fan Assembly

Engine Cooling Fan

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

35 Cooling Fan Assemblys found

View related parts

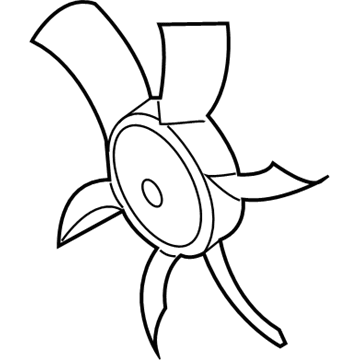

Volvo Fan Blade, Driver Side Part Number: 30623066
$119.55 MSRP: $141.14
You Save: $21.59 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator And Condenser Cooling Fan Assembly; Fan Blade
Fits the following Volvo Models:
- S40 | 2000-2004 | Base, i, LSE, T5 | 4 Cyl 1.9 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- V40 | 2000-2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts

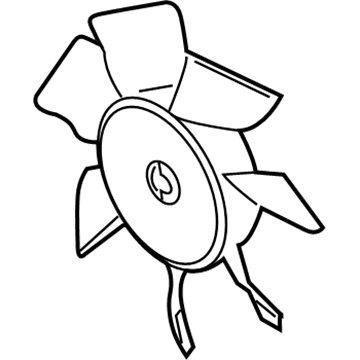

Volvo Fan Blade, Passenger Side Part Number: 3345745
$119.55 MSRP: $141.14
You Save: $21.59 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator And Condenser Cooling Fan Assembly; Fan Blade
Fits the following Volvo Models:
- S40 | 2000-2004 | Base, i, LSE, T5 | 4 Cyl 1.9 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- V40 | 2000-2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts

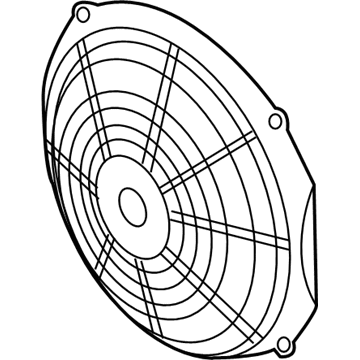

Volvo Fan Assembly Part Number: 30630531
$216.80 MSRP: $258.10
You Save: $41.30 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Cooling Fan Assembly; Fan Assembly
Fits the following Volvo Models:
- S40 | 2000-2004 | Base, LSE | 4 Cyl 1.9 L GAS
- V40 | 2000-2004 | Base, LSE | 4 Cyl 1.9 L GAS
View related parts

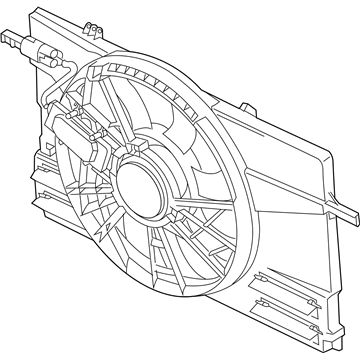

Volvo Fan Assembly Part Number: 30680587
$241.32 MSRP: $365.64
You Save: $124.32 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Engine Cooling Fan Assembly; Fan Assembly
Fits the following Volvo Models:
- C70 | 2006-2007 | T5 | 5 Cyl 2.5 L GAS
- S40 | 2004-2008 | 2.4i, i, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts

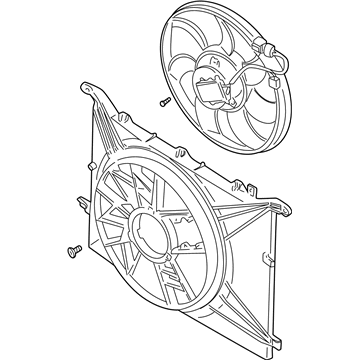

Volvo Cooling Fan Part Number: 8649821
$286.16 MSRP: $433.59
You Save: $147.43 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Cooling Fan Assembly; Cooling Fan
Fits the following Volvo Models:
- S80 | 1999-2000 | 2.9, T6 | 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS
View related parts

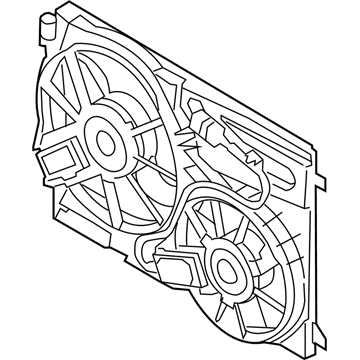

Volvo Fan & Motor Part Number: 31200375
$414.02 MSRP: $534.92
You Save: $120.90 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan 2506; Cooling Fan Assembly; Fan & Motor, Fan Assembly
Fits the following Volvo Models:
- S80 | 2007-2008 | 3.2, T6, V8 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
- V70 | 2008 | 3.2 | 6 Cyl 3.2 L GAS
- XC70 | 2008-2013 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
View More
View related parts

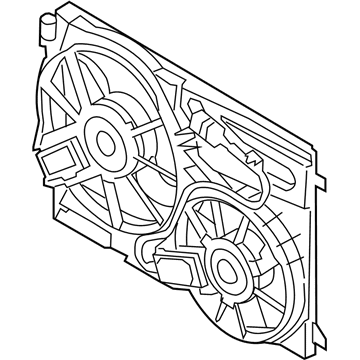

Volvo Cooling Fan Part Number: 31686808
$435.83 MSRP: $563.08
You Save: $127.25 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator & Condenser Fan; Engine Cooling Fan; Cooling Fan, Fan & Motor, Fan Assembly
- Replaces: 30668629, 31338823
Fits the following Volvo Models:
- S60 | 2011-2016 | T5, T6, T6 Polestar, T6 R-Design, T6 R-Design Platinum | 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
- S80 | 2008-2015 | 3.2, T5, T6, V8 | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
- V60 | 2015-2016 | T6 Polestar, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS
- V70 | 2008-2010 | 3.2 | 6 Cyl 3.2 L GAS
- XC60 | 2010-2017 | 3.2, 3.2 R-Design, T5, T5 Dynamic, T5 Inscription, T5 Platinum, T5 Premier, T6, T6 Dynamic, T6 Inscription, T6 Ocean Race, T6 Platinum, T6 Premier, T6 R-Design, T6 R-Design Platinum | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC70 | 2008-2016 | 3.2, T5, T5 Platinum, T5 Premier, T6 | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
View More
View related parts

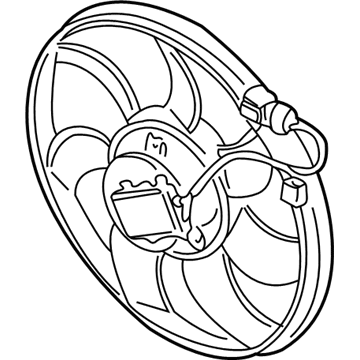

Volvo Cooling Fan Part Number: 31368075
$482.11 MSRP: $730.47
You Save: $248.36 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator And Condenser Fan Assembly; Cooling Fan, Fan & Motor
Fits the following Volvo Models:
- XC90 | 2003-2014 | 2.5T, 3.2, 3.2 R-Design, Base, T6, V8, V8 Ocean Race, V8 Sport | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
View related parts
Volvo Fan Assembly Part Number: 31657772
$486.54 MSRP: $737.18
You Save: $250.64 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dual Radiator And Condenser Fan Assembly; Fan Assembly, Fan Module
- Replaced by: 32339486
Fits the following Volvo Models:
- XC90 | 2016-2022 | T6 First Edition, T6 Inscription, T6 Momentum, T6 R-Design, T8 Excellence, T8 Inscription, T8 Momentum, T8 R-Design, T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge R-Design | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Volvo Fan & Motor Part Number: 32249744
$486.54 MSRP: $737.18
You Save: $250.64 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Cooling Fan Assembly; Fan & Motor, Fan Module
- Replaced by: 32249968
Fits the following Volvo Models:
- S90 | 2017-2019 | T5 Inscription, T5 Momentum, T6 Inscription, T6 Momentum, T8 Inscription, T8 Momentum | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- XC90 | 2016-2022 | T5 Inscription, T5 Momentum, T5 R-Design | 4 Cyl 2.0 L GAS
View related parts
Volvo Fan Assembly Part Number: 32249968
$486.54 MSRP: $737.18
You Save: $250.64 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Cooling Fan Assembly; Fan Assembly, Fan Module
- Replaces: 32249744, 30668647
Fits the following Volvo Models:
- S90 | 2017-2019 | T5 Inscription, T5 Momentum, T6 Inscription, T6 Momentum, T8 Inscription, T8 Momentum | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- XC90 | 2016-2023 | T5 Inscription, T5 Momentum, T5 R-Design, T8 Recharge Core, T8 Recharge Plus, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Volvo Fan & Motor Part Number: 31493262
$482.11 MSRP: $730.47
You Save: $248.36 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Cooling Fan Assembly; Fan & Motor, Fan Assembly, Fan Module
Fits the following Volvo Models:
- S60 | 2022 | B5 Inscription, B5 Momentum | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- S90 | 2022-2023 | B6 Inscription, B6 Momentum, B6 Plus, B6 R-Design, B6 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- V60 Cross Country | 2023 | B5 Plus, B5 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- V90 Cross Country | 2022-2023 | B6, B6 Plus, B6 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- XC60 | 2022-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, B6 Inscription, B6 Momentum, B6 R-Design, B6 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View More
View related parts

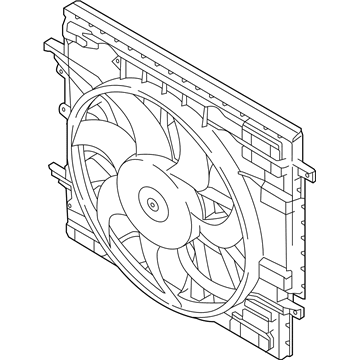

Volvo Fan & Motor Part Number: 31657361
$482.11 MSRP: $730.47
You Save: $248.36 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan 2511; Cooling Fan Assembly; Fan & Motor, Fan Assembly, Fan Module
- Replaced by: 32339488
Fits the following Volvo Models:
- S60 | 2019-2021 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Polestar, T8 R-Design, T8 Recharge Inscription, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge R-Design Expression | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- S90 | 2017-2021 | T5 Inscription, T5 Momentum, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Momentum, T8 R-Design, T8 Recharge Inscription, T8 Recharge R-Design | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 | 2019-2022 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Polestar, T8 Recharge Polestar | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 Cross Country | 2020-2021 | T5 | 4 Cyl 2.0 L GAS
- V90 | 2018-2021 | T5 Inscription, T5 R-Design, T6 Inscription, T6 R-Design | 4 Cyl 2.0 L GAS
- V90 Cross Country | 2017-2021 | T5, T6, T6 Ocean Race | 4 Cyl 2.0 L GAS
- XC60 | 2018-2021 | T5 Inscription, T5 Momentum, T5 R-Design | 4 Cyl 2.0 L GAS
View More
View related parts

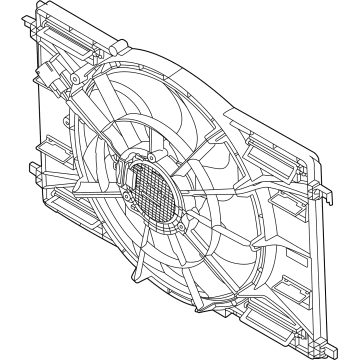

Volvo Fan Assembly Part Number: 31686161
$482.11 MSRP: $730.47
You Save: $248.36 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Cooling Fan Assembly; Fan Assembly, Fan Module
Fits the following Volvo Models:
- XC40 | 2023 | B4 Plus, B4 Ultimate, B5 Core, B5 Plus, B5 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View related parts

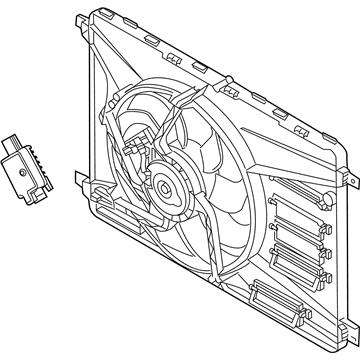

Volvo Fan & Motor Part Number: 31686810
$482.11 MSRP: $730.47
You Save: $248.36 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Cooling Fan Assembly; Fan & Motor, Fan Assembly
- Replaces: 31368505
Fits the following Volvo Models:
- S60 | 2015-2018 | Polestar, T5, T5 Dynamic, T5 Inscription, T5 Inscription Platinum, T5 Inscription Premier, T5 Platinum, T5 Premier, T5 Premier Plus, T5 R-Design Special Edition, T6, T6 Platinum, T6 Premier Plus, T6 R-Design Platinum | 4 Cyl 2.0 L GAS
- S60 Cross Country | 2017-2018 | T5 | 4 Cyl 2.0 L GAS
- V60 | 2015-2018 | Polestar, T5, T5 Dynamic, T5 Platinum, T5 Premier, T5 Premier Plus, T6 R-Design, T6 R-Design Platinum | 4 Cyl 2.0 L GAS
- V60 Cross Country | 2017-2018 | T5, T5 Platinum | 4 Cyl 2.0 L GAS
View More
View related parts

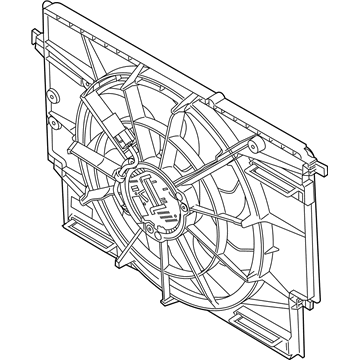

Volvo Fan & Motor Part Number: 32222108
$482.11 MSRP: $730.47
You Save: $248.36 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Cooling Fan Assembly; Fan & Motor, Fan Assembly
Fits the following Volvo Models:
- XC40 | 2019-2022 | T4 Momentum, T5 Inscription, T5 Momentum, T5 R-Design | 4 Cyl 2.0 L GAS
View related parts
Volvo Fan & Motor Part Number: 32222109
$482.11 MSRP: $730.47
You Save: $248.36 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Cooling Fan Assembly; Fan & Motor, Fan Assembly
Fits the following Volvo Models:
- XC40 | 2019-2022 | T4 Inscription, T4 Momentum, T4 R-Design | 4 Cyl 2.0 L GAS
View related parts
Volvo Fan & Motor Part Number: 32222287
$482.11 MSRP: $730.47
You Save: $248.36 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Cooling Fan Assembly; Fan & Motor, Fan Assembly
Fits the following Volvo Models:
- XC60 | 2022-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, B6 Inscription, B6 Momentum, B6 R-Design, B6 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View related parts
Volvo Fan Assembly Part Number: 32222480
$482.11 MSRP: $730.47
You Save: $248.36 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electrical Fan; Cooling Fan Assembly; Fan Assembly, Fan Module
Fits the following Volvo Models:
- XC90 | 2023 | B5 Core, B5 Plus, B6 Core, B6 Plus, B6 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View related parts

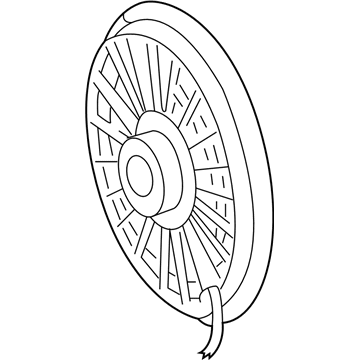

Volvo Fan Blade Part Number: 9497929
Product Specifications
- Other Name: Dual Radiator And Condenser Fan Assembly; Fan & Motor, Fan Assembly, Fan Blade
Fits the following Volvo Models:
- 850 | 1997 | Base, GLT, R, T-5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- C70 | 1998-2004 | Base | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- S70 | 1998-2000 | AWD, Base, GLT, GLT SE, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- V70 | 1998-2000 | AWD, Base, GLT, GLT SE, R, R AWD, T5, X/C AWD, X/C AWD SE | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
View More

| Page 1 of 2 |Next >

1-20 of 35 Results

Volvo Cooling Fan Assembly Parts and Q&A

Fan Blade
1274942
Q: How to remove and install a Cooling Fan Assembly on a belt-driven type fan on Volvo 740?
A:
To remove and install the belt-driven type fan, first remove the negative battery cable then remove the top section of the tan shroud if applicable. Loosen the adjusting bolts to slacken the drive belts followed by remove the tan mounting bolts and fan assembly. For installation, the engine fan should be placed back, the tan mounting bolts should be tightened, the drive belt(s) should be adjusted to the specified tension, the top half of the fan shroud should be reinstalled if removed, and the negative battery cable should be reconnected. For models with electric cooling fans, the fan is operated by a thermocontact or thermal switch, usually kicking in when coolant temperatures reach between 190-212deg F. (88-100degC). B6304F engines have a fully electric radiator fan which is controlled by a relay reacting to temperature conditions or pressure switches in the A/C circuit, the relay being mounted in front of the battery. For models without 850/C70/S70/V70, disconnect both battery cables, remove the battery holder if required and disconnect the harness connector on the crossmember. Undo the relay and take off the ground lead and then the tan shroud if necessary, then the cooling fan mounting bolts to remove the fan assembly. For installation, put the fan assembly back, tighten the mounting bolts, reinstall the fan shroud, reconnect the ground lead and relay connector, attach the cross member connector, reinstall the battery holder, reconnect the battery cables, and start the engine and check the cooling fan operation. For 850/C70/S70/V70 models, remove the negative battery cable, remove the retaining bolts on the relay holder from the radiator, remove the control module and air intake hoses, and remove the four tan mounting bolts. Pull the fan up, unplug the relay and tan connectors and remove the tan from the vehicle. To install, put the fan back in the engine compartment, attach the relay and connectors, tighten the retaining bolts, reinstall the air hoses and secure the relay holder and reconnect the negative battery cable.
Fan Blade, Driver Side
30623066
Q: How is the Cooling Fan Assembly controlled and what steps should be taken if it is not functioning properly on Volvo V40?
A:
The cooling fan is regulated by the engine management ECU via the cooling fan relay, based on input from the coolant temperature sensor, and possibly the air conditioning system pressure switch. If a fan is not operating when the engine is running fine, the problem may be with the cooling fan relay or motor. A bad ECU or temperature sensor will usually cause a rough running engine and may cause the engine management light to illuminate. To check the motor, unplug the wiring connector and use a 12 volt supply directly. For the cooling fan relay replacement with a known working relay is recommended. For non-turbo models, disconnect the battery negative terminal and then disconnect the wiring connector from the fan motor and unclip the wiring/hoses from the fan shroud. If necessary, jack up the front of the car to get access, remove the engine/transmission undershield and unbolt the fan shroud off of the radiator, then maneuvering the fan assembly out. For models with air conditioning, unbolt the fan assembly from the radiator, remove the radiator and then pull out the cooling fan. Disconnecting wiring connector and unbolting fan shroud from the radiator as the auxiliary cooling fan requires. For turbo models support the engine/transmission with a hoist, remove headlight access covers, disconnect hoses and wiring and then remove the fan assembly ensuring correct reassembly and torque upon refitting.
