Question 1

How to replace the wheel bearings and wheel hub on Volvo 740?

Accepted Answer

The front wheel bearings on front drive vehicles are not adjustable and if the lateral amount of run-out on the hub with the disc removed is greater than 0.0007 inch (0.020mm) then the hub will need to be replaced. To remove and install components on 850, 870, C70 and V70 models, first raise and safely support the vehicle before removing the wheel. Disconnect the ABS sensor from the axle shaft without disconnecting the connector and hang it out of the way. Next, remove the caliper, carrier and rotor, making sure to hang the caliper safely. Proceed to remove halfshaft, separate ball joint from the control arm and disconnect the sway bar link. Remove the 4 bolts holding the hub and extract the hub. For installation, clean the axle shaft and the hub mating surface and clean the ABS sensor with a soft brush. Install the new hub, tightening the bolts one by one, to 33 ft. lbs. (45 Nm) + 60 degrees. Insert the axle shaft into the hub, fit the splines and tighten the new axle shaft nut by hand. Connect the ball joint to the control arm with new nuts and then connect the sway bar link. Install the brake rotor, carrier and caliper, tightening the axle nut to 89 ft. lbs. (120 Nm) plus an additional 60 degrees, using tool 5461 or an equivalent to counterhold, and lock the axle shaft nut with a chisel. Clean the ABS sensor and its seat and tighten the sensor to 84 inch lbs. (10 Nm) and then install the wheels and lower the vehicle.

Question 2

How to remove and refit the front wheel hub assembly and brake components on Volvo V40?

Accepted Answer

To remove the wheel trim or hub cap if applicable slacken the hub nut while the car is resting on its wheels also slacken the wheel nuts. Chock the rear wheels, apply the handbrake, jack up the front of the car and support it on axle stands - before removing the appropriate front roadwheel. Slacken and remove the hub nut and washer if fitted (discarding the nut to use a new one upon refitting). If the nut was not slackened with the wheels on the ground have an assistant depress the brake pedal so the front hub does not rotate while you remove the hub nut. Remove the anti-lock braking system sensor from the hub, slide out the retaining clips and clear the front brake caliper hose from its brackets. Remove the brake disc, discarding the brake caliper mounting bolts which have to be renewed. Extract the split pin, slacken and remove the nut holding the steering gear track rod end balljoint to the swivel hub, release the balljoint tapered shank with a universal separator. Loosen the lower arm balljoint nut slightly and remove the nuts and withdraw the bolts holding the swivel hub to the suspension strut, removing the nuts and bolts to be used on refitting new ones. Carefully release the outer constant velocity joint splines from the hub without damaging the driveshaft gaiter (if tight tap it out with a hammer and soft metal drift while an assistant supports the hub assembly or puller/extractor if necessary). Unscrew the nut from the lower arm balljoint, remove the swivel hub assembly from the balljoint shank, and remove this from the car, using a separator if necessary. For refitting, take the time to make sure that the driveshaft outer constant velocity joint and hub splines are clean and dry, using locking fluid or grease where appropriate. Position hub assembly, engaging with the lower arm balljoint, and screw on the balljoint nut, tightening to the indicated torque. Move the top of the swivel hub inwards while engaging the driveshaft, and then slide the hub all the way onto the driveshaft splines, pushing in new suspension strut mounting bolts and reinstalling the retaining nuts, tightening them to the recommended torque. Fit the washer and new hub nut, tightening it by hand only at this point. Connect the steering track rod balljoint to the swivel hub again, making the retaining nut tight and attaching a new split pin. Refit the brake disc to the hub, slide the caliper into position making sure the pads go either side of the disc, then fit new mounting bolts and tighten them to specified torque. Refit the ABS sensor to hub, find brake hose in brackets and fix in place using retaining clips. For pre-1998 model year cars, tighten the hub nut to the specified amount of torque using the method used when removing it to prevent hub rotation, or lightly tighten it now and tighten it completely after the car is on its wheels. For cars from 1998 model year onwards, tighten the hub nut to the specified Stage 1 torque setting using the same method, then angle-tighten it through specified Stage 2 angle, using an angle measuring gauge for accuracy or marking with white paint if you do not have a gauge. Finally, check to see if the hub rotates freely, refit the roadwheel, lower the car to the ground and tighten the wheel nuts and hub nut to the specified torque.

Genuine Volvo Wheel Hub

39 Wheel Hubs found

Volvo Front Hub Part Number: 30794650

Volvo Hub & Bearing Part Number: 31340099

Volvo Hub Part Number: 31340100

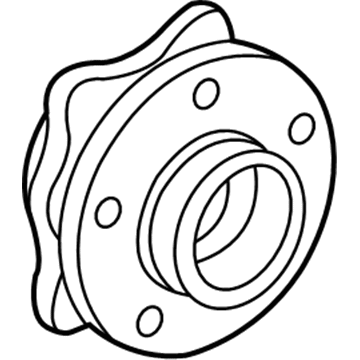

Volvo Hub Assembly Part Number: 31329980

Volvo Hub Assembly, Front Part Number: 8672371

Volvo Front Hub & Bearing Part Number: 31262950

Volvo Hub & Bearing, Rear Part Number: 31340119

Volvo Hub & Bearing, Rear Part Number: 31340120

Volvo Hub & Bearing, Rear Part Number: 31340686

Volvo Hub & Bearing, Rear Part Number: 9173872

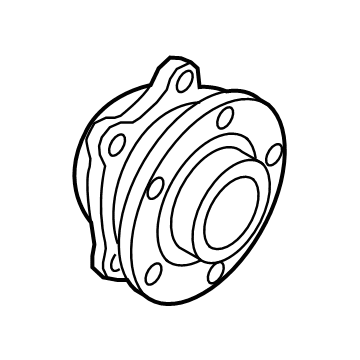

Volvo Hub Assembly Part Number: 32329659

Volvo Rear Hub & Bearing Part Number: 31329968

Volvo Hub & Bearing Part Number: 31329971

Volvo Hub & Bearing, Rear Part Number: 31340341

Volvo Hub & Bearing, Rear Part Number: 31360026

Volvo Rear Hub & Bearing Part Number: 31360027

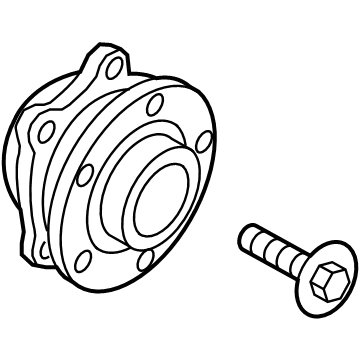

Volvo Hub Assembly Part Number: 32329658

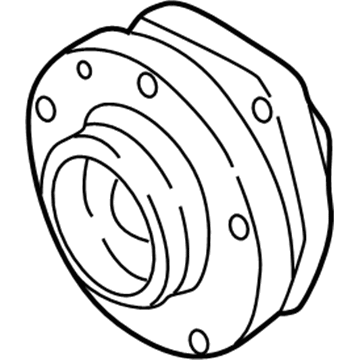

Volvo Hub Assembly Part Number: 272456

Volvo Hub Assembly Part Number: 274378

Volvo Hub Assembly, Front Part Number: 30639875
