How to replace gauges in the instrument cluster, and what are the legal requirements for odometer readings during replacement on Volvo 740?

The gauges can be replaced individually on some models, while others necessitate the replacement of the entire gauge cluster assembly, which contains various components such as modules, printed circuit boards, fuses, and sometimes small microprocessor computers for the clock and driver information center. Diagnosing this system is complex and costly, as most parts are special order only, making trial and error replacement impractical; therefore, it is advisable to diagnose the failed component before replacement. For models allowing gauge replacement, the instrument cluster should be removed, followed by the cluster cover, and then the retaining devices, which may include bolts or tabs, to take out the gauge from the cluster, with installation being the reverse of this process. In cases where the entire cluster must be replaced, the instrument cluster is removed, the printed circuit board and any necessary components are taken out, the cluster cover is removed, and the instrument cluster retainers are unfastened to extract the gauge cluster assembly. When replacing a speedometer or odometer assembly, or the instrument cluster, federal law mandates that the odometer reading of the replacement unit must match the prior odometer's mileage; if this is not possible, the replacement must be set to zero, and a proper label must be affixed to the driver's door frame indicating the previous odometer reading and the date of replacement.

How to remove and install the Instrument Cluster on Volvo 940?

To remove and install the cluster for 240, 700 Series, 940 Models, and Coupe; first disconnect the negative battery cable, then remove the molded plastic casings from the steering column. Next, remove the bracket retaining screw and place the bracket down toward the steering column and remove the cluster attaching screws, disconnecting the speedometer cable. Tilt the cluster out of its snap fitting and disconnect the plug and if equipped with a tachometer disconnect the tachometer sending wire before lifting the cluster out of the dashboard. For installation purposes, place the cluster in the dashboard, making sure the wire and speedometer cable are reconnected before snapping it down and ensuring it snaps its connections. Install the cluster attaching screws, replace the bracket and the holding screw, install the moulded plastic casings on the steering column and reconnect the negative battery cable. For models not using 240, 700 Series and 940 Models and Coupe, start by disconnecting the negative battery cable and opening the glove compartment. Disconnect the swing-down arms from the glove compartment door, remove the screws to the lining, and disconnect the passenger side air bag module. Remove the screws over the glove compartment and under the air bag module, as well as over the instrument cluster and remove the panel vents and side demister vents. Remove the retaining screws behind the vents, the dash speaker grilles and speakers, followed by the dash panel retaining screws under each speaker grille. Remove the instrument panel cover using the attached passenger side air bag module, remove the holding clips on the instrument cluster, lift it from the dashboard and remove connectors attached at the back of the instrument cluster to remove the instrument cluster. For installation, replace any light bulbs in the instrument cluster by twisting the light bulb counterclockwise to remove and clockwise to put the new light bulb. Connectors on the back of the cluster assembly are connected, inserted and retaining clips are connected. Then place the instrument panel cover and install the retaining screws, then the vents, dash speakers and grilles. Install air bag module retaining screws, plug in air bag module connector, install glove compartment lining and lid and finally reconnect negative battery cable.

Genuine Volvo Instrument Cluster

Speedometer Instrument Cluster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

166 Instrument Clusters found

View related parts

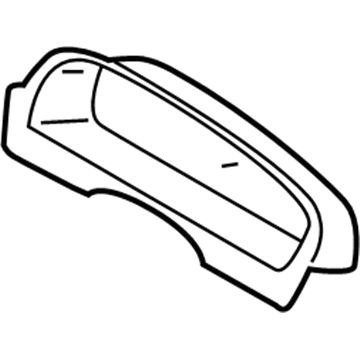

Volvo Cluster Bezel Part Number: 30643025
$51.03 MSRP: $65.36
You Save: $14.33 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Frame; Instrument Cluster; Cluster Bezel
Fits the following Volvo Models:
- XC90 | 2003-2014 | 2.5T, 3.2, 3.2 R-Design, Base, T6, V8, V8 Ocean Race, V8 Sport | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
View related parts
Volvo Tachometer Part Number: 9128515
$129.99 MSRP: $166.56
You Save: $36.57 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster
Fits the following Volvo Models:
- 850 | 1993-1995 | Base, GLT, T-5R, Turbo | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
View related parts

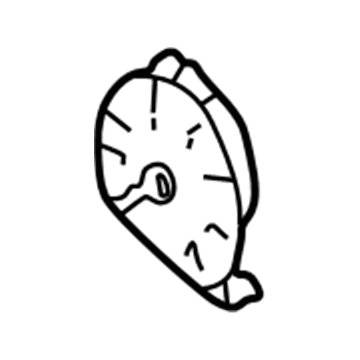

Volvo Tachometer Part Number: 9168150
$178.75 MSRP: $211.04
You Save: $32.29 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster
Fits the following Volvo Models:
- C70 | 1998-1999 | Base | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- S70 | 1998-1999 | Base, GLT, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- V70 | 1998-1999 | AWD, Base, GLT, R, T5, X/C AWD | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
View More
View related parts

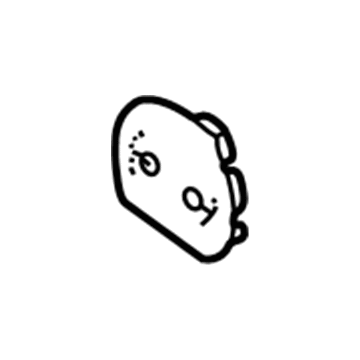

Volvo Fuel Gauge Part Number: 9168146
$188.57 MSRP: $224.49
You Save: $35.92 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster
Fits the following Volvo Models:
- C70 | 1998 | Base | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- S70 | 1998 | Base, GLT, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- V70 | 1998 | AWD, Base, GLT, X/C AWD | 5 Cyl 2.4 L GAS
View More
View related parts
Volvo Tachometer Part Number: 9451502
$189.70 MSRP: $225.83
You Save: $36.13 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster
Fits the following Volvo Models:
- C70 | 1999-2004 | Base | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- S70 | 1999-2000 | AWD, Base, GLT, GLT SE, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- V70 | 1999-2004 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, GLT, GLT SE, T5, X/C AWD, X/C AWD SE | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View More
View related parts

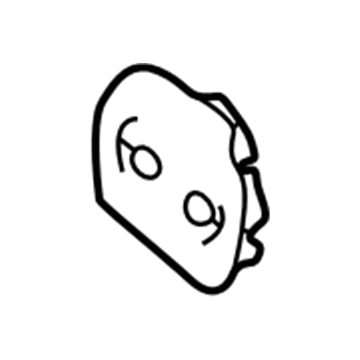

Volvo Fuel Gauge Part Number: 9178998
$201.00 MSRP: $239.28
You Save: $38.28 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster
Fits the following Volvo Models:
- C70 | 1999-2004 | Base | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- S70 | 1999-2000 | AWD, Base, GLT, GLT SE, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- V70 | 1999-2004 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, GLT, GLT SE, T5, X/C AWD, X/C AWD SE | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View More
View related parts

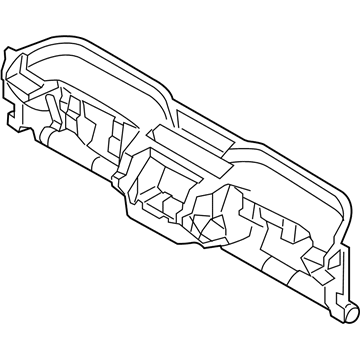

Volvo Instrument Panel Part Number: 8635157
$722.24 MSRP: $948.94
You Save: $226.70 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Framework; Instrument Cluster; Carrier Housing, Frame, Instrument Panel
Fits the following Volvo Models:
- C30 | 2008-2013 | T5, T5 R-Design | 5 Cyl 2.5 L GAS
- C70 | 2006-2013 | T5 | 5 Cyl 2.5 L GAS
- V50 | 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View More
View related parts
Volvo Instrument Cluster Part Number: 8603945
$602.73 MSRP: $725.88
You Save: $123.15 (17%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument; Cluster Assembly, Instrument Cluster
Fits the following Volvo Models:
- C70 | 2006-2008 | T5 | 5 Cyl 2.5 L GAS
View related parts
Volvo Instrument Cluster Part Number: 8603413
$780.38 MSRP: $940.96
You Save: $160.58 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument; Instrument Cluster
Fits the following Volvo Models:
- S80 | 2007-2008 | 3.2, T6, V8 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
View related parts
Volvo Instrument Cluster Part Number: 8603414
$780.38 MSRP: $940.96
You Save: $160.58 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument; Instrument Cluster
Fits the following Volvo Models:
- S80 | 2007-2008 | 3.2, T6, V8 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
View related parts
Volvo Instrument Panel, Beige Part Number: 9425296
$1819.10 MSRP: $2390.09
You Save: $570.99 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster; Instrument Panel
Fits the following Volvo Models:
- S70 | 1998-2000 | AWD, Base, GLT, GLT SE, T5 | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- V70 | 1998-2000 | AWD, Base, GLT, GLT SE, R, R AWD, T5, X/C AWD, X/C AWD SE | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
View related parts

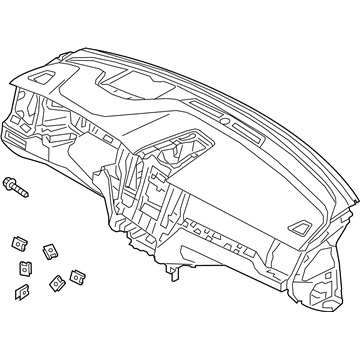

Volvo Instrument Panel, Charcoal Part Number: 31417720
$1095.26 MSRP: $1450.29
You Save: $355.03 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster; Instrument Panel
Fits the following Volvo Models:
- XC60 | 2018-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, B6 Inscription, B6 R-Design, B6 Ultimate, T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Momentum, T8 Polestar, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge Plus, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Volvo Instrument Panel, Charcoal Part Number: 31417722
$1095.26 MSRP: $1450.29
You Save: $355.03 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster; Instrument Panel
Fits the following Volvo Models:
- XC60 | 2018-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, B6 Inscription, B6 R-Design, B6 Ultimate, T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Momentum, T8 Polestar, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge Plus, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Volvo Instrument Panel Part Number: 31442543
$1095.26 MSRP: $1450.29
You Save: $355.03 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster; Instrument Panel
Fits the following Volvo Models:
- C40 Recharge | 2022-2023 | Core, Plus, Ultimate | BATTERY EV (EV/BEV)
- XC40 | 2019-2023 | B4 Plus, B4 Ultimate, B5 Core, B5 Plus, B5 Ultimate, T4 Inscription, T4 Momentum, T4 R-Design, T5 Inscription, T5 Momentum, T5 R-Design | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- XC40 Recharge | 2021-2023 | Base, Core, Plus, Ultimate | BATTERY EV (EV/BEV)
View More
View related parts

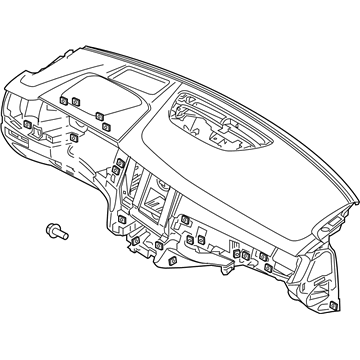

Volvo Instrument Panel, Charcoal Part Number: 31467475
$1095.26 MSRP: $1450.29
You Save: $355.03 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster; Instrument Panel
Fits the following Volvo Models:
- S60 | 2019-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, Recharge R-Design, T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Polestar, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Plus, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge R-Design Expression, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 | 2019-2023 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Polestar, T8 Recharge Polestar | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 Cross Country | 2020-2023 | B5 Plus, B5 Ultimate, T5 | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View More
View related parts
Volvo Instrument Panel Part Number: 31467476
$1095.26 MSRP: $1450.29
You Save: $355.03 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster; Instrument Panel
Fits the following Volvo Models:
- S60 | 2019-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, Recharge R-Design, T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Polestar, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Plus, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge R-Design Expression, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 | 2019-2023 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Polestar, T8 Recharge Polestar | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 Cross Country | 2020-2023 | B5 Plus, B5 Ultimate, T5 | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View More
View related parts
Volvo Instrument Panel, Charcoal Part Number: 31467479
$1095.26 MSRP: $1450.29
You Save: $355.03 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster; Instrument Panel
Fits the following Volvo Models:
- S60 | 2019-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, Recharge R-Design, T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Polestar, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Plus, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge R-Design Expression, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 | 2019-2023 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Polestar, T8 Recharge Polestar | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 Cross Country | 2020-2023 | B5 Plus, B5 Ultimate, T5 | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View More
View related parts
Volvo Instrument Panel Part Number: 31467480
$1095.26 MSRP: $1450.29
You Save: $355.03 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster; Instrument Panel
Fits the following Volvo Models:
- S60 | 2019-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, Recharge R-Design, T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Polestar, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Plus, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge R-Design Expression, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 | 2019-2023 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Polestar, T8 Recharge Polestar | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 Cross Country | 2020-2023 | B5 Plus, B5 Ultimate, T5 | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View More
View related parts
Volvo Instrument Panel Part Number: 31477711
$1095.26 MSRP: $1450.29
You Save: $355.03 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster; Instrument Panel
Fits the following Volvo Models:
- XC60 | 2018-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, B6 Inscription, B6 R-Design, B6 Ultimate, T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Momentum, T8 Polestar, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge Plus, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Volvo Instrument Panel Part Number: 31477716
$1095.26 MSRP: $1450.29
You Save: $355.03 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Instrument Cluster; Instrument Panel
Fits the following Volvo Models:
- XC60 | 2018-2023 | B5 Core, B5 Inscription, B5 Momentum, B5 Plus, B5 R-Design, B5 Ultimate, B6 Inscription, B6 R-Design, B6 Ultimate, T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Momentum, T8 Polestar, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge Plus, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)

| Page 1 of 9 |Next >

1-20 of 166 Results

Volvo Instrument Cluster

The Volvo Instrument Cluster provides clear real-time speed, engine, and safety alerts so drivers will be informed without taking their eyes off the road. Founded in Gothenburg in 1927, Volvo gained its reputation for people-first innovations like the pioneering 3-point seat belt, sturdy brake systems, and a clean Scandinavian design with an emphasis on simplicity of controls rather than clutter. Volvo also marches forward with its electric powertrains and plug-in hybrid testing, as well as pairing low emissions with the rock-solid build quality drivers expect. The belief that Volvo brings the same safety philosophy to every car, truck, and bus means that families and professionals alike know Volvo vehicles to be safe, comfortable, and easy to operate even in the harsh Nordic winters. Complementing these brand-wide strengths, the Instrument Cluster brings them to life inside every cabin. Positioned behind the steering wheel, the Instrument Cluster bundles the speedometer, tachometer, fuel gauge, and intuitive warning icons in one glance-friendly space, interpreting sensor data as soon as it arrives so a driver can adjust speed, refuel immediately, or be aware of a seat belt reminder before trouble begins. Later versions combine analog needles and digital readouts and add real-time fuel economy without sacrificing the quality of the crisp lighting and padded surroundings characteristic of Volvo interior quality. Durable, bright, and logically laid out, the Instrument Cluster emphasizes the brand's commitment to confidence on the road.

Trust OEM Instrument Cluster for quality that holds up. These parts use top-tier materials to keep your ride running smooth. Because they match exact Volvo specs, you get a flawless fit and a hassle-free install every single time. No more fighting with parts that just won't line up. It is easy to search our massive stock of genuine Volvo options at prices you will really like. Every part comes with a real manufacturer's warranty and a simple return policy. Plus, we ship fast to get your order to you. Shop with confidence and give your Volvo the reliability it deserves.

Volvo Instrument Cluster Parts and Q&A

Temperature Gauge
1363748
Q: How to replace gauges in the instrument cluster, and what are the legal requirements for odometer readings during replacement on Volvo 740?
A:
The gauges can be replaced individually on some models, while others necessitate the replacement of the entire gauge cluster assembly, which contains various components such as modules, printed circuit boards, fuses, and sometimes small microprocessor computers for the clock and driver information center. Diagnosing this system is complex and costly, as most parts are special order only, making trial and error replacement impractical; therefore, it is advisable to diagnose the failed component before replacement. For models allowing gauge replacement, the instrument cluster should be removed, followed by the cluster cover, and then the retaining devices, which may include bolts or tabs, to take out the gauge from the cluster, with installation being the reverse of this process. In cases where the entire cluster must be replaced, the instrument cluster is removed, the printed circuit board and any necessary components are taken out, the cluster cover is removed, and the instrument cluster retainers are unfastened to extract the gauge cluster assembly. When replacing a speedometer or odometer assembly, or the instrument cluster, federal law mandates that the odometer reading of the replacement unit must match the prior odometer's mileage; if this is not possible, the replacement must be set to zero, and a proper label must be affixed to the driver's door frame indicating the previous odometer reading and the date of replacement.
Gauge Bezel
6812821
Q: How to remove and install the Instrument Cluster on Volvo 940?
A:
To remove and install the cluster for 240, 700 Series, 940 Models, and Coupe; first disconnect the negative battery cable, then remove the molded plastic casings from the steering column. Next, remove the bracket retaining screw and place the bracket down toward the steering column and remove the cluster attaching screws, disconnecting the speedometer cable. Tilt the cluster out of its snap fitting and disconnect the plug and if equipped with a tachometer disconnect the tachometer sending wire before lifting the cluster out of the dashboard. For installation purposes, place the cluster in the dashboard, making sure the wire and speedometer cable are reconnected before snapping it down and ensuring it snaps its connections. Install the cluster attaching screws, replace the bracket and the holding screw, install the moulded plastic casings on the steering column and reconnect the negative battery cable. For models not using 240, 700 Series and 940 Models and Coupe, start by disconnecting the negative battery cable and opening the glove compartment. Disconnect the swing-down arms from the glove compartment door, remove the screws to the lining, and disconnect the passenger side air bag module. Remove the screws over the glove compartment and under the air bag module, as well as over the instrument cluster and remove the panel vents and side demister vents. Remove the retaining screws behind the vents, the dash speaker grilles and speakers, followed by the dash panel retaining screws under each speaker grille. Remove the instrument panel cover using the attached passenger side air bag module, remove the holding clips on the instrument cluster, lift it from the dashboard and remove connectors attached at the back of the instrument cluster to remove the instrument cluster. For installation, replace any light bulbs in the instrument cluster by twisting the light bulb counterclockwise to remove and clockwise to put the new light bulb. Connectors on the back of the cluster assembly are connected, inserted and retaining clips are connected. Then place the instrument panel cover and install the retaining screws, then the vents, dash speakers and grilles. Install air bag module retaining screws, plug in air bag module connector, install glove compartment lining and lid and finally reconnect negative battery cable.
