How to remove the Power Steering Pump auxiliary drivebelt on Volvo V70?

To remove the auxiliary drivebelt, you first need to improve access to it by removing the cold air inlet duct from the ECU box if it is fitted, and releasing the fluid supply hose from the clip on the pump pulley. To minimize the fluid loss, clamp the fluid supply hose near the pump and then loosen the pressure pipe union lock bracket bolt a few turns and take off the lock bracket. Place absorbent rags underneath the pump, unscrew the pressure pipe union and recover the O-ring. Carefully disconnect the fluid supply hose from the pipe stub on the pump without using excessive force so as not to damage it. Access the pulley and undo the three mounting bolts from the pump and for diesel models to remove the bracket from the back of the pump. If contamination of power steering fluid is suspected, the car should be raised and supported at the front so that the wheels are just off the ground, and then a suitable container should be placed beneath the car to catch the fluid from the hoses while the steering is turned from lock to lock. If a new pump is being fitted, transfer the pulley and reservoir should be done by a dealer or qualified repairer because of the special tools required. For refitting, follow the reverse order of removal while using a new O-ring on the pressure pipe union, tightening the mounting bolts to the specified torque, refitting the auxiliary drivebelt, ensuring pressure pipe union locking bracket fits around the hexagon section of the union and refilling or topping up the fluid reservoir while bleeding the system.

Genuine Volvo V70 Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Power Steering Pumps found

View related parts
Volvo V70 Power Steering Pump Part Number: 8251738
$564.11 MSRP: $709.60
You Save: $145.49 (21%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering 2604; Steering Pump, Mech; Power Steering Pump
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2004 | R | 5 Cyl 2.5 L GAS
View related parts
Volvo V70 Power Steering Pump Part Number: 36050558
$552.02 MSRP: $654.67
You Save: $102.65 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering; Power Steering Pump
- Replaces: 36002540
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2007 | R | 5 Cyl 2.5 L GAS
View related parts
Volvo V70 Power Steering Pump Part Number: 36050560
$552.02 MSRP: $654.67
You Save: $102.65 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering; Power Steering Pump
- Replaces: 36002539
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2006-2007 | 2.4, 2.5T | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts

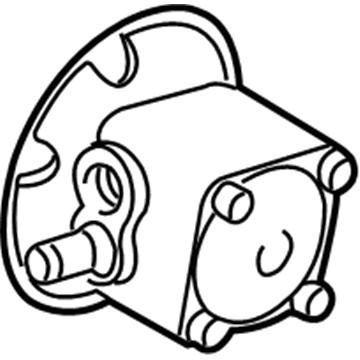

Volvo V70 Power Steering Pump Part Number: 8251736
$552.02 MSRP: $654.67
You Save: $102.65 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering; Steering Pump, Mech; Power Steering Pump
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2000-2004 | 2.4, 2.4T, 2.5T, 2.5T AWD, AWD, Base, GLT, GLT SE, R AWD, T5, X/C, X/C AWD, X/C AWD SE | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V70 Power Steering Pump Part Number: 8251957
$552.02 MSRP: $654.67
You Save: $102.65 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering; Power Steering Pump
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2007 | 2.4, 2.5T, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V70 Power Steering Pump Part Number: 36002409
$762.53 MSRP: $920.62
You Save: $158.09 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering; Steering Pump, Mech; Power Steering Pump
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2008-2010 | 3.2 | 6 Cyl 3.2 L GAS

Volvo V70 Power Steering Pump

The Volvo V70 Power Steering Pump reduces the effort of steering by changing engine torque into hydraulic pressure that helps the driver turn the wheel. The pump, which is mounted on the engine and rotates on a V-belt or serpentine belt by the crankshaft, draws fluid from the attached or remote reservoir, pressurizes it, and directs the flow through a high-pressure hose to the steering gear control valve, which diverts the flow to one side of a piston in the rack or steering box. At the center of the wheel, the pressure is evenly distributed on either side of the piston; thus, the car travels in a straight line; however, as soon as the wheel turns, the valve skews toward one side, and the additional force rotates the wheels with minimum effort. Prior V70 versions employed a constant-flow hydraulic system, and in these Volvo systems assist remained elevated at all speeds and at one point felt extremely light on highways. Subsequent Volvo models retained the same fundamental pumping components but included an electronic flow-control valve that uses signals of speed and steering angle and reduces output when easy parking tasks are attempted and when at cruise speed more firm road feel is wanted. It is this development that enabled Volvo to strike a balance between comfort and feedback. Common symptoms of a worn-out Power Steering Pump are whining sounds, fluid leakage, squealing belts, and increased steering effort when making low-speed turns, and pressure checks that do not meet factory standards establish whether the Power Steering Pump has to be replaced.

OEM parts are the only choice for top quality and real functionality. They pass strict checks, and they match Volvo's factory specs, so installation is easy. If you need new Power Steering Pump and you want quality and fit. You will find both here. Our site has a wide range of OEM Volvo V70 parts. The prices are unbeatable, allowing you to get value for money. Each genuine V70 Power Steering Pump comes with the manufacturer's warranty. That gives you peace of mind. We ship fast to your door. Order today, and enjoy a smooth, no-hassle upgrade with parts that fit right.

Volvo V70 Power Steering Pump Parts and Q&A

Power Steering Pump
36050558
Q: How to remove the Power Steering Pump auxiliary drivebelt on Volvo V70?
A:
To remove the auxiliary drivebelt, you first need to improve access to it by removing the cold air inlet duct from the ECU box if it is fitted, and releasing the fluid supply hose from the clip on the pump pulley. To minimize the fluid loss, clamp the fluid supply hose near the pump and then loosen the pressure pipe union lock bracket bolt a few turns and take off the lock bracket. Place absorbent rags underneath the pump, unscrew the pressure pipe union and recover the O-ring. Carefully disconnect the fluid supply hose from the pipe stub on the pump without using excessive force so as not to damage it. Access the pulley and undo the three mounting bolts from the pump and for diesel models to remove the bracket from the back of the pump. If contamination of power steering fluid is suspected, the car should be raised and supported at the front so that the wheels are just off the ground, and then a suitable container should be placed beneath the car to catch the fluid from the hoses while the steering is turned from lock to lock. If a new pump is being fitted, transfer the pulley and reservoir should be done by a dealer or qualified repairer because of the special tools required. For refitting, follow the reverse order of removal while using a new O-ring on the pressure pipe union, tightening the mounting bolts to the specified torque, refitting the auxiliary drivebelt, ensuring pressure pipe union locking bracket fits around the hexagon section of the union and refilling or topping up the fluid reservoir while bleeding the system.
