How to remove the door lock and outer handle assembly on Volvo V50?

To remove the outer handle, first disconnect the battery negative lead on models with the keyless entry system, then prise out the rubber grommet from the end of the door. Undo the Torx screw in the grommet aperture a maximum of 5 complete turns, and pull out the lock cylinder, outer handle, and rubber seal from the door. For models with the keyless entry system, pull the outer handle wiring plug forwards and secure it before disconnecting to avoid losing the connector inside the door. Refitting is the reverse of removal. The removal of the front door lock cylinder is part of the outer door handle removal procedure. To remove the front door lock assembly, lower the front window by approximately 290mm, disconnect the battery negative lead, and remove the door window by sliding it fully upwards and taping it in position. Remove the outer door handle, disconnect the door mirror wiring plug, and remove the 3 Torx bolts securing the lock mechanism along with the single Torx screw at the base of the glass guide. Undo the Torx screw securing the outer door handle frame and the 9 screws securing the door cassette assembly. Prise up the locking catch and disconnect the wiring plug from the door, then reach inside the door frame to slide up the plastic catch and push the connector into the door. Manoeuvre the cassette assembly from the door, remove the lock button, disconnect the lock wiring plug, and the interior handle release cable from the lock mechanism. Drill out the rivet at the base of the mechanism, unclip the outer handle mechanism from the cassette, and disconnect the 2 release cables. Unhook the lock mechanism and manoeuvre it from the cassette assembly, with refitting being a reversal of the removal procedure. For the rear door lock assembly, lower the rear window by approximately 150mm, disconnect the battery negative lead, and remove the door window by sliding it fully upwards and taping it in position. Remove the outer door handle, undo the Torx screw securing the outer handle frame, and remove the 3 Torx bolts securing the lock mechanism. Undo the 8 screws securing the door cassette assembly, peel back the rubber gaiter to detach the lock button, and disconnect the door wiring plug from the pillar before pressing the harness into the door. Manoeuvre the cassette assembly from the door, disconnect the lock wiring plug, and the interior handle release cable from the lock mechanism. Drill out the rivet at the base of the mechanism, disconnect the outer handle release cable, and unhook the lock mechanism from the cassette assembly, with refitting being a reversal of the removal procedure. Both the front and rear interior handles are integral with the door trim panels and are not available separately.

Genuine Volvo V50 Door Lock

Power Door Lock Actuator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Door Locks found

View related parts

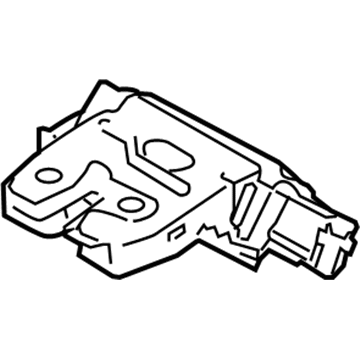

Volvo V50 Lock Part Number: 31335047
$64.28 MSRP: $83.00
You Save: $18.72 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Trunk Lid Latch; Door Lock
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Lock, Driver Side Part Number: 30699795
$122.85 MSRP: $157.41
You Save: $34.56 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock, Left; Door Lock; Lock
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005 | i, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Lock, Driver Side Part Number: 30753944
$122.85 MSRP: $157.41
You Save: $34.56 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock, Left; Door Lock; Lock
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2006-2007 | 2.4i, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Lock Actuator, Driver Side Part Number: 31253657
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock; Door Lock Actuator; Tailgate Lock; Door Lock; Lock Actuator
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Lock Actuator, Passenger Side Part Number: 31253658
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock; Door Lock Actuator; Door Lock; Lock Actuator
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Lock Actuator, Driver Side Part Number: 31253659
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock; Door Lock Actuator; Tailgate Lock; Door Lock; Lock Actuator
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2007-2011 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Lock Actuator, Passenger Side Part Number: 31253660
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock; Door Lock Actuator; Tailgate Lock; Door Lock; Lock Actuator
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Lock Actuator, Driver Side Part Number: 31253661
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock; Door Lock Actuator; Door Lock; Lock Actuator, Lock Assembly
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Lock Actuator, Passenger Side Part Number: 31253662
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock; Door Lock Actuator; Door Lock; Lock Actuator, Lock Assembly
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2008-2011 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts

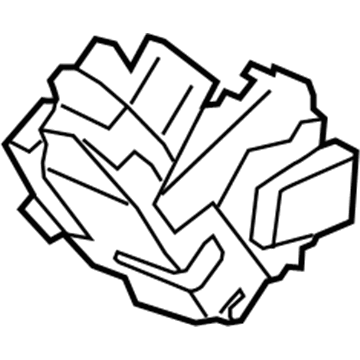

Volvo V50 Lock Actuator, Driver Side Part Number: 31253663
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock; Door Lock Actuator; Tailgate Lock; Door Lock; Lock Actuator, Lock Assembly
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2010-2011 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Lock Actuator, Passenger Side Part Number: 31253664
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock; Door Lock Actuator; Door Lock; Lock Actuator, Lock Assembly
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2010-2011 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts

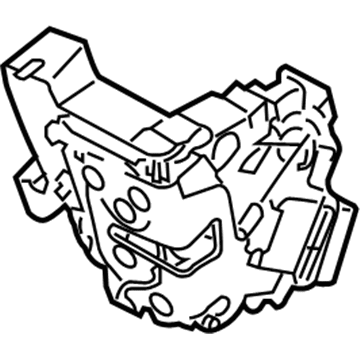

Volvo V50 Lock Actuator, Passenger Side Part Number: 31416674
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock; Door Lock Actuator; Door Lock; Lock Actuator
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2011 | T5, T5 R-Design | 5 Cyl 2.5 L GAS
View related parts

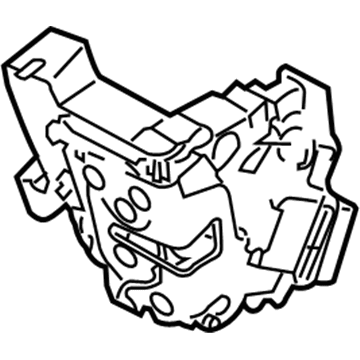

Volvo V50 Lock Actuator, Driver Side Part Number: 31416681
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Door Latch, Front Left; Door Lock Actuator; Lock Actuator
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2011 | T5, T5 R-Design | 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Lock Actuator, Driver Side Part Number: 31416685
$242.72 MSRP: $316.04
You Save: $73.32 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Front Left Door Latch/Lock Actuator Assembly; Lock Actuator, Lock Assembly
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2011 | T5, T5 R-Design | 5 Cyl 2.5 L GAS

Volvo V50 Door Lock

The Volvo V50 Door Lock ensures that this small car does not get into the wrong hands since none of the doors can be opened before the driver releases them. It begins with a heavy latch and striker, and in older models a normal-looking key is applied to turn a cylinder and press a rod that clips out the exterior handle, a basic but effective mechanical solution. Subsequent models of Volvo added power locking, and there is a small electric actuator on each latch to enable a dashboard or door-panel switch to lock all entrances simultaneously. This development led to the use of remote keyless entry that involves the use of a radio-coded key fob that instructs a receiver to lock or unlock the car and, in most cases, the sounding of the horn when the lock button is pressed twice to acknowledge. There are also some variations of the Volvo compact that have an automatic mode that locks when drive is chosen or when it reaches a specific speed and opens once it goes back to park. There are three Door Lock formats across the V50 production run so that there are manual, power and remote or automatic versions and the only difference between them is in the way the same latch is ordered about, as with a physical key, as with an electric signal in an interior switch, as with a wireless pulse read by a control module. Regardless of the fitted format, every Volvo Door Lock has the same set of objectives in preventing theft and preserving the safety of passengers at the core with steadily growing convenience.

OEM parts are the only choice for top quality and real functionality. They pass strict checks, and they match Volvo's factory specs, so installation is easy. If you need new Door Lock and you want quality and fit. You will find both here. Our site has a wide range of OEM Volvo V50 parts. The prices are unbeatable, allowing you to get value for money. Each genuine V50 Door Lock comes with the manufacturer's warranty. That gives you peace of mind. We ship fast to your door. Order today, and enjoy a smooth, no-hassle upgrade with parts that fit right.

Volvo V50 Door Lock Parts and Q&A

Lock, Driver Side
30699795
Q: How to remove the door lock and outer handle assembly on Volvo V50?
A:
To remove the outer handle, first disconnect the battery negative lead on models with the keyless entry system, then prise out the rubber grommet from the end of the door. Undo the Torx screw in the grommet aperture a maximum of 5 complete turns, and pull out the lock cylinder, outer handle, and rubber seal from the door. For models with the keyless entry system, pull the outer handle wiring plug forwards and secure it before disconnecting to avoid losing the connector inside the door. Refitting is the reverse of removal. The removal of the front door lock cylinder is part of the outer door handle removal procedure. To remove the front door lock assembly, lower the front window by approximately 290mm, disconnect the battery negative lead, and remove the door window by sliding it fully upwards and taping it in position. Remove the outer door handle, disconnect the door mirror wiring plug, and remove the 3 Torx bolts securing the lock mechanism along with the single Torx screw at the base of the glass guide. Undo the Torx screw securing the outer door handle frame and the 9 screws securing the door cassette assembly. Prise up the locking catch and disconnect the wiring plug from the door, then reach inside the door frame to slide up the plastic catch and push the connector into the door. Manoeuvre the cassette assembly from the door, remove the lock button, disconnect the lock wiring plug, and the interior handle release cable from the lock mechanism. Drill out the rivet at the base of the mechanism, unclip the outer handle mechanism from the cassette, and disconnect the 2 release cables. Unhook the lock mechanism and manoeuvre it from the cassette assembly, with refitting being a reversal of the removal procedure. For the rear door lock assembly, lower the rear window by approximately 150mm, disconnect the battery negative lead, and remove the door window by sliding it fully upwards and taping it in position. Remove the outer door handle, undo the Torx screw securing the outer handle frame, and remove the 3 Torx bolts securing the lock mechanism. Undo the 8 screws securing the door cassette assembly, peel back the rubber gaiter to detach the lock button, and disconnect the door wiring plug from the pillar before pressing the harness into the door. Manoeuvre the cassette assembly from the door, disconnect the lock wiring plug, and the interior handle release cable from the lock mechanism. Drill out the rivet at the base of the mechanism, disconnect the outer handle release cable, and unhook the lock mechanism from the cassette assembly, with refitting being a reversal of the removal procedure. Both the front and rear interior handles are integral with the door trim panels and are not available separately.
