How to remove and install the Timing Cover and Timing Cover Gasket on Volvo 740?

To remove and install the 2.8L 6-cylinder engine cover and seal, disconnect the negative battery cable and remove the air cleaner and valve covers. Loosen the fan shroud and remove the fan and then the fan shroud itself. Loosen the alternator, air pump, power steering pump and air conditioning compressor, if equipped, and remove their drive belts. Block the flywheel from turning, and remove the crankshaft pulley nut (36mm) and the pulley (without dropping the pulley key into the crankcase). Next, take out the power steering pump and set it to the side, then the pump bracket. Remove the 11mm hex retaining bolts for the timing chain cover, tap and remove the timing chain cover. Clean gasket contact surfaces, install the upper gasket on the cover and the lower gasket on the block and install the cover and tighten to 7-11 ft. lbs. (10-15 Nm). tightening the gaskets flush with the valve cover, fit a new crankshaft seal, block the flywheel, fit the pulley and key, tighten 36mm nut to 118-132ft.lbs.(160-180Nm) Reinstall power steering pump, pump bracket, alternator, air pump, air conditioning compressor, then fan and shroud, and finally, accessory drive belts. Finally, reconnect the negative battery cable, start the engine and see if there are any leaks. For seal replacement only, follow similar initial steps to disconnect the battery and remove components and use a suitable puller to remove the old seal with care not to damage the timing chain cover contact surface. Fill the space between the lips on the seal with grease, install the new seal with the correct tool, and finish reinstalling the components as was previously described, being sure to check for leaks once the engine is started.

Genuine Volvo Timing Cover Gasket

Engine Timing Cover Gasket

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Timing Cover Gaskets found

View related parts
Volvo Timing Cover Gasket, Driver Side Part Number: 30720106
$9.20 MSRP: $11.78
You Save: $2.58 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket; Engine Timing Cover Gasket, Left; Front Cover Gasket, Timing Cover Gasket
Fits the following Volvo Models:
- S80 | 2007-2010 | V8 | 8 Cyl 4.4 L GAS
- XC90 | 2005-2011 | 2.5T, 3.2, T6, V8, V8 Ocean Race, V8 Sport | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
View related parts

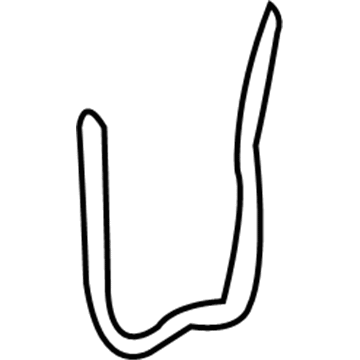

Volvo Timing Cover Gasket Part Number: 30720107
$9.20 MSRP: $11.78
You Save: $2.58 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket; Front Cover Gasket, Timing Cover Gasket
Fits the following Volvo Models:
- S80 | 2007-2010 | V8 | 8 Cyl 4.4 L GAS
- XC90 | 2005-2011 | 2.5T, 3.2, T6, V8, V8 Ocean Race, V8 Sport | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
View related parts

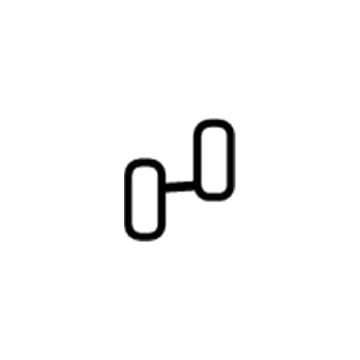

Volvo Timing Cover Gasket Part Number: 30720108
$9.20 MSRP: $11.78
You Save: $2.58 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket; Timing Cover Gasket
Fits the following Volvo Models:
- S80 | 2007-2010 | V8 | 8 Cyl 4.4 L GAS
View related parts
Volvo Timing Cover Gasket, Passenger Side Part Number: 30720105
$12.02 MSRP: $15.39
You Save: $3.37 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket; Engine Timing Cover Gasket, Right; Front Cover Gasket, Timing Cover Gasket
Fits the following Volvo Models:
- S80 | 2007-2010 | V8 | 8 Cyl 4.4 L GAS
- XC90 | 2005-2011 | 2.5T, 3.2, T6, V8, V8 Ocean Race, V8 Sport | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
View related parts
Volvo Timing Cover Gasket Part Number: 30711315
$40.67 MSRP: $52.09
You Save: $11.42 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket; Engine Timing Cover Gasket, Outer
Fits the following Volvo Models:
- S60 | 2011-2016 | T6, T6 Polestar, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS
- S80 | 2007-2015 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- V60 | 2015-2016 | T6 Polestar, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS
- V70 | 2008-2010 | 3.2 | 6 Cyl 3.2 L GAS
- XC60 | 2010-2016 | 3.2, 3.2 R-Design, T6, T6 Ocean Race, T6 Platinum, T6 Premier, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC70 | 2008-2015 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC90 | 2007-2014 | 3.2, 3.2 R-Design | 6 Cyl 3.2 L GAS
View More
View related parts

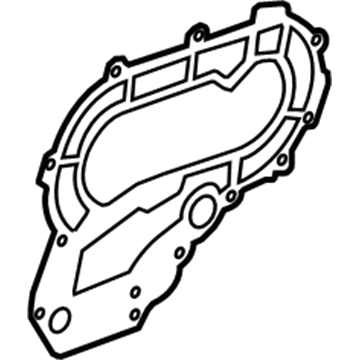

Volvo Timing Cover Gasket Part Number: 31251345
$182.64 MSRP: $237.81
You Save: $55.17 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket; Engine Timing Cover Gasket, Inner
Fits the following Volvo Models:
- S60 | 2011-2016 | T6, T6 Polestar, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS
- S80 | 2007-2015 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- V60 | 2015-2016 | T6 Polestar, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS
- V70 | 2008-2010 | 3.2 | 6 Cyl 3.2 L GAS
- XC60 | 2010-2016 | 3.2, 3.2 R-Design, T6, T6 Ocean Race, T6 Platinum, T6 Premier, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC70 | 2008-2015 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC90 | 2007-2014 | 3.2, 3.2 R-Design | 6 Cyl 3.2 L GAS
View More
View related parts
Volvo Timing Cover Gasket Part Number: 1378493
$8.55 MSRP: $10.96
You Save: $2.41 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket; Engine Timing Cover Gasket
Fits the following Volvo Models:
- 240 | 1990-1993 | Base, DL, GL, SE | 4 Cyl 2.3 L GAS
- 244 | 1989 | DL, GL | 4 Cyl 2.3 L GAS
- 245 | 1989 | DL, GL | 4 Cyl 2.3 L GAS
- 740 | 1991-1992 | Base, T | 4 Cyl 2.3 L GAS
- 780 | 1991 | Base | 4 Cyl 2.3 L GAS
- 850 | 1993-1994 | Base, GLT, Turbo | 5 Cyl 2.3 L GAS, 5 Cyl 2.4 L GAS
- 940 | 1991-1995 | Base, GL, GLE, SE, T | 4 Cyl 2.3 L GAS
View More
View related parts
Volvo Timing Cover Gasket Part Number: 1271485
$62.62 MSRP: $73.93
You Save: $11.31 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket
Fits the following Volvo Models:
- 760 | 1987-1990 | GLE | 6 Cyl 2.8 L GAS
- 780 | 1987-1990 | Base | 6 Cyl 2.8 L GAS
View related parts
Volvo Timing Cover Gasket Part Number: 3514108
$34.43 MSRP: $40.32
You Save: $5.89 (15%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket; Timing Cover Gasket
Fits the following Volvo Models:
- 244 | 1985-1988 | DL, GL, Turbo | 4 Cyl 2.1 L GAS, 4 Cyl 2.3 L GAS
- 245 | 1985-1988 | Base, DL, GL | 4 Cyl 2.1 L GAS, 4 Cyl 2.3 L GAS
- 760 | 1984-1987 | GLE | 6 Cyl 2.8 L GAS
View More

Volvo Timing Cover Gasket Parts and Q&A

Timing Cover Gasket
1378493
Q: How to remove and install the Timing Cover and Timing Cover Gasket on Volvo 740?
A:
To remove and install the 2.8L 6-cylinder engine cover and seal, disconnect the negative battery cable and remove the air cleaner and valve covers. Loosen the fan shroud and remove the fan and then the fan shroud itself. Loosen the alternator, air pump, power steering pump and air conditioning compressor, if equipped, and remove their drive belts. Block the flywheel from turning, and remove the crankshaft pulley nut (36mm) and the pulley (without dropping the pulley key into the crankcase). Next, take out the power steering pump and set it to the side, then the pump bracket. Remove the 11mm hex retaining bolts for the timing chain cover, tap and remove the timing chain cover. Clean gasket contact surfaces, install the upper gasket on the cover and the lower gasket on the block and install the cover and tighten to 7-11 ft. lbs. (10-15 Nm). tightening the gaskets flush with the valve cover, fit a new crankshaft seal, block the flywheel, fit the pulley and key, tighten 36mm nut to 118-132ft.lbs.(160-180Nm) Reinstall power steering pump, pump bracket, alternator, air pump, air conditioning compressor, then fan and shroud, and finally, accessory drive belts. Finally, reconnect the negative battery cable, start the engine and see if there are any leaks. For seal replacement only, follow similar initial steps to disconnect the battery and remove components and use a suitable puller to remove the old seal with care not to damage the timing chain cover contact surface. Fill the space between the lips on the seal with grease, install the new seal with the correct tool, and finish reinstalling the components as was previously described, being sure to check for leaks once the engine is started.
