How to remove and refit the Engine Control Module on the automatic transmission ECU on Volvo S70?

The automatic transmission ECU, fuel ECU, and ignition ECU are in the ECU box on the front right-hand side of the engine compartment, in front of the cooling system expansion tank. To remove the ECU make sure the ignition is off, wipe the top of the ECU box lid to avoid leaving dirt inside, release the catch on the side of the lid, and lift it off. Then, pull the locking lever on top of the ECU forwards and withdrawal from slot three of the box, nearest to the right-hand wheel arch. For refitting, find the ECU in the box, engaging it with the connector at the base of the ECU, push down the locking lever to secure it and refit the module box lid. If you are installing a new ECU, adapt the throttle position sensor signal by chocking up all four wheels and applying the handbrake. Start the engine, move selector lever to D (Drive) position, depressing brake pedal firmly, fully depress accelerator pedal for 5 seconds (to close the kickdown switch), then release the accelerator and move selector lever to P (Park) position, the new throttle position sensor signal is stored in the ECU memory. Finally, turn off the engine and take the wheel chocks away.

What precautions should be taken before starting work on the Engine Control Module and where is the automatic transmission ECU located on Volvo V40?

The automatic transmission ECU is housed in the passenger compartment at the rear of the facia/centre console. Make sure that the ignition is off before you start work because the ECU can be damaged if the wiring plug is disconnected while the ignition is on. Wait for a further two minutes to make sure that the transmission main relay is completely de-energised and if the engine cooling fan is running when the engine is switched off wait for it to stop and then wait for a further two minutes. Begin by taking out the radio/cassette or storage bin from the centre console, and then the ashtray. Unclip trim panel from right hand side of centre console. The ECU is mounted on a bracket that is fixed by four bolts, remove these bolts and remove the ECU and bracket from beneath the facia. Disconnect the ECU wiring connector and carefully remove the ECU from the car without touching the ECU connector pins, which will damage the ECU by static electricity. For refitting, follow the process in reverse. If a new ECU is installed, adapt it to the throttle position sensor signal, by switching on the ignition without starting the engine, depressing the accelerator pedal fully to activate the kickdown switch for five seconds, and then releasing the pedals to store the new throttle position sensor signal in the ECU memory, and then switching off the ignition.

Genuine Volvo Engine Control Module

Engine Control Computer

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

39 Engine Control Modules found

View related parts
Volvo Control Module Part Number: 8601825
$570.05 MSRP: $677.38
You Save: $107.33 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Engine Control Module; ECM
Fits the following Volvo Models:
- S70 | 2000 | Base | 5 Cyl 2.4 L GAS
- S80 | 2000 | 2.9 | 6 Cyl 2.9 L GAS
- V70 | 2000 | Base | 5 Cyl 2.4 L GAS
View More
View related parts
Volvo Electronic Control Part Number: 30765624
$847.29 MSRP: $1121.94
You Save: $274.65 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electronics Box; Engine Control Module; Electronic Control
Fits the following Volvo Models:
- S80 | 2007-2010 | 3.2, T6, V8 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
- V70 | 2008-2010 | 3.2 | 6 Cyl 3.2 L GAS
- XC60 | 2010 | 3.2, T6, T6 R-Design | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC70 | 2008-2010 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
View More
View related parts

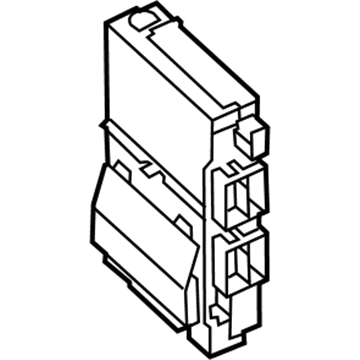

Volvo Electronic Control Part Number: 31412971
$847.29 MSRP: $1121.94
You Save: $274.65 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Electronics Box; Engine Control Module; Electronic Control
Fits the following Volvo Models:
- S60 | 2011-2018 | Polestar, T5, T5 Dynamic, T5 Inscription, T5 Inscription Platinum, T5 Inscription Premier, T5 Platinum, T5 Premier, T5 Premier Plus, T5 R-Design Special Edition, T6, T6 Platinum, T6 Polestar, T6 Premier Plus, T6 R-Design, T6 R-Design Platinum | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
- S60 Cross Country | 2016-2018 | T5, T5 Platinum | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS
- S80 | 2010-2016 | 3.2, T5, T5 Platinum, T6, V8 | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
- V60 | 2015-2018 | Polestar, T5, T5 Dynamic, T5 Platinum, T5 Premier, T5 Premier Plus, T6 Polestar, T6 R-Design, T6 R-Design Platinum | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
- V60 Cross Country | 2015-2018 | T5, T5 Platinum | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS
- XC60 | 2010-2017 | 3.2, 3.2 R-Design, T5, T5 Dynamic, T5 Inscription, T5 Platinum, T5 Premier, T6, T6 Dynamic, T6 Inscription, T6 Ocean Race, T6 Platinum, T6 Premier, T6 R-Design, T6 R-Design Platinum | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC70 | 2010-2016 | 3.2, T5, T5 Platinum, T5 Premier, T6 | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
View More
View related parts
Volvo ECM Part Number: 8603731
$1055.86 MSRP: $1277.02
You Save: $221.16 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Module; Engine Control Module; ECM
Fits the following Volvo Models:
- S80 | 2007-2009 | V8 | 8 Cyl 4.4 L GAS
View related parts
Volvo ECM Part Number: 36000670
$642.13 MSRP: $776.13
You Save: $134.00 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S60 | 2013-2016 | T5, T5 Inscription Platinum, T5 Inscription Premier, T5 Platinum, T5 Premier, T5 Premier Plus | 5 Cyl 2.5 L GAS
- S60 Cross Country | 2016 | T5 Platinum | 5 Cyl 2.5 L GAS
- V60 | 2015-2016 | T5, T5 Platinum, T5 Premier, T5 Premier Plus | 5 Cyl 2.5 L GAS
- V60 Cross Country | 2015-2016 | T5, T5 Platinum | 5 Cyl 2.5 L GAS
- XC60 | 2015-2016 | T5, T5 Platinum, T5 Premier | 5 Cyl 2.5 L GAS
View More
View related parts

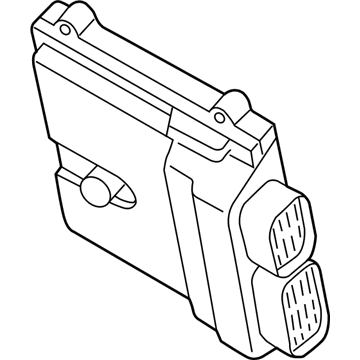

Volvo ECM Part Number: 36002594
$1374.82 MSRP: $1663.16
You Save: $288.34 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S40 | 2007-2010 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
- V50 | 2007-2010 | 2.4i | 5 Cyl 2.4 L GAS
View related parts
Volvo ECM Part Number: 36000493
$1189.10 MSRP: $1438.32
You Save: $249.22 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S80 | 2009-2010 | T6 | 6 Cyl 3.0 L GAS
- XC60 | 2010-2011 | T6, T6 R-Design | 6 Cyl 3.0 L GAS
- XC70 | 2009-2010 | T6 | 6 Cyl 3.0 L GAS
View More
View related parts
Volvo ECM Part Number: 36000787
$1631.27 MSRP: $1973.63
You Save: $342.36 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S80 | 2007-2009 | 3.2 | 6 Cyl 3.2 L GAS
- V70 | 2008-2009 | 3.2 | 6 Cyl 3.2 L GAS
- XC70 | 2008 | 3.2 | 6 Cyl 3.2 L GAS
- XC90 | 2007-2010 | 3.2 | 6 Cyl 3.2 L GAS
View More
View related parts
Volvo ECM Part Number: 36000939
$1631.27 MSRP: $1973.63
You Save: $342.36 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S80 | 2009-2010 | V8 | 8 Cyl 4.4 L GAS
- XC90 | 2010-2011 | V8 | 8 Cyl 4.4 L GAS
View related parts
Volvo ECM Part Number: 36000942
$1055.86 MSRP: $1277.02
You Save: $221.16 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S80 | 2009-2014 | 3.2 | 6 Cyl 3.2 L GAS
- V70 | 2009-2010 | 3.2 | 6 Cyl 3.2 L GAS
- XC60 | 2010-2011 | 3.2, 3.2 R-Design | 6 Cyl 3.2 L GAS
- XC70 | 2009-2010 | 3.2 | 6 Cyl 3.2 L GAS
View More
View related parts
Volvo ECM Part Number: 36001363
$1374.82 MSRP: $1663.16
You Save: $288.34 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S60 | 2011-2016 | T6, T6 Polestar, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS
- S80 | 2010-2015 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- V60 | 2015-2016 | T6 Polestar, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS
- XC60 | 2010-2016 | 3.2, 3.2 R-Design, T6, T6 Ocean Race, T6 Platinum, T6 Premier, T6 R-Design, T6 R-Design Platinum | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC70 | 2008-2015 | 3.2, T6 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- XC90 | 2011-2014 | 3.2, 3.2 R-Design | 6 Cyl 3.2 L GAS
View More
View related parts
Volvo ECM Part Number: 36002166
$989.24 MSRP: $1196.36
You Save: $207.12 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S80 | 2008-2009 | T6 | 6 Cyl 3.0 L GAS
- XC60 | 2010 | T6, T6 R-Design | 6 Cyl 3.0 L GAS
- XC70 | 2009 | T6 | 6 Cyl 3.0 L GAS
View More
View related parts
Volvo ECM Part Number: 36003275
$1631.27 MSRP: $1973.63
You Save: $342.36 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
- Replaces: 36003274
Fits the following Volvo Models:
- S60 | 2020-2023 | Recharge R-Design, T8 Inscription, T8 Polestar, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Plus, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge R-Design Expression, T8 Recharge Ultimate | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- S90 | 2020-2023 | B6 Inscription, B6 Momentum, B6 Plus, B6 R-Design, B6 Ultimate, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 R-Design, T8 Recharge Inscription, T8 Recharge R-Design, T8 Recharge Ultimate | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 | 2020-2021 | T8 Polestar, T8 Recharge Polestar | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- XC60 | 2020-2023 | B5 Inscription, B5 Momentum, B5 R-Design, B6 Inscription, B6 R-Design, T8 Inscription, T8 Momentum, T8 Polestar, T8 R-Design, T8 Recharge Core, T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge Plus, T8 Recharge Polestar, T8 Recharge R-Design, T8 Recharge Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- XC90 | 2023 | T8 Recharge Core, T8 Recharge Plus, T8 Recharge Ultimate | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts
Volvo ECM Part Number: 36003329
$1631.27 MSRP: $1973.63
You Save: $342.36 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S60 | 2022 | B5 Inscription, B5 Momentum, B5 R-Design | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- V60 Cross Country | 2020-2021 | T5 | 4 Cyl 2.0 L GAS
- XC90 | 2023 | B5 Core, B5 Plus | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View More
View related parts
Volvo ECM Part Number: 36003609
$1374.82 MSRP: $1663.16
You Save: $288.34 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S60 | 2023 | B5 Core, B5 Plus, B5 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- V60 | 2023 | T8 Recharge Polestar | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 Cross Country | 2023 | B5 Plus, B5 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- XC40 | 2023 | B4 Plus, B4 Ultimate, B5 Core, B5 Plus, B5 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- XC90 | 2023 | B5 Core, B5 Plus | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
View More
View related parts
Volvo ECM Part Number: 36003610
$1631.27 MSRP: $1973.63
You Save: $342.36 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S90 | 2023 | B6 Plus, B6 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- V90 Cross Country | 2022-2023 | B6, B6 Plus, B6 Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV)
- XC90 | 2023 | B5 Core, B5 Plus, B6 Core, B6 Plus, B6 Ultimate, T8 Recharge Core, T8 Recharge Plus, T8 Recharge Ultimate | 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts
Volvo ECM Part Number: 36010223
$1631.27 MSRP: $1973.63
You Save: $342.36 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
- Replaces: 36010095
Fits the following Volvo Models:
- S90 | 2017 | T5 Inscription, T5 Momentum, T6 Inscription, T6 Momentum | 4 Cyl 2.0 L GAS
- V90 | 2018-2021 | T5 Inscription, T5 R-Design, T6 Inscription, T6 R-Design | 4 Cyl 2.0 L GAS
- V90 Cross Country | 2017-2021 | T5, T6, T6 Ocean Race | 4 Cyl 2.0 L GAS
- XC90 | 2016-2022 | T5 Inscription, T5 Momentum, T5 R-Design, T6 First Edition, T6 Inscription, T6 Momentum, T6 R-Design, T8 Excellence, T8 Inscription, T8 Momentum, T8 R-Design, T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge R-Design | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts
Volvo ECM Part Number: 36011422
$1631.27 MSRP: $1973.63
You Save: $342.36 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
Fits the following Volvo Models:
- S60 | 2015-2018 | T5, T5 Dynamic, T5 Inscription, T5 Inscription Platinum, T5 Inscription Premier, T5 Platinum, T5 Premier, T5 Premier Plus, T5 R-Design Special Edition | 4 Cyl 2.0 L GAS
- S60 Cross Country | 2017-2018 | T5 | 4 Cyl 2.0 L GAS
- S80 | 2015-2016 | T5, T5 Platinum | 4 Cyl 2.0 L GAS
- V60 | 2015-2018 | Polestar, T5, T5 Dynamic, T5 Platinum, T5 Premier, T5 Premier Plus, T6 R-Design, T6 R-Design Platinum | 4 Cyl 2.0 L GAS
- V60 Cross Country | 2017-2018 | T5, T5 Platinum | 4 Cyl 2.0 L GAS
- XC60 | 2015-2017 | T5, T5 Dynamic, T5 Inscription, T5 Platinum, T5 Premier | 4 Cyl 2.0 L GAS
- XC70 | 2015-2016 | T5, T5 Platinum, T5 Premier | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS
View More
View related parts

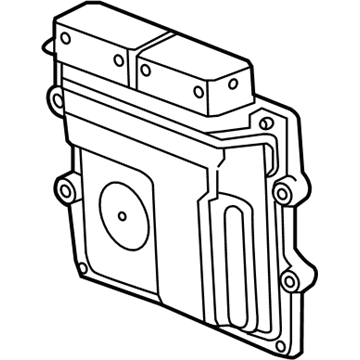

Volvo ECM Part Number: 36011423
$1631.27 MSRP: $1973.63
You Save: $342.36 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
- Replaces: 36010037
Fits the following Volvo Models:
- S60 | 2015-2018 | Polestar, T6, T6 Platinum, T6 Premier Plus, T6 R-Design Platinum | 4 Cyl 2.0 L GAS
- V60 | 2016-2018 | Polestar, T5, T5 Dynamic, T5 Platinum, T5 Premier, T6 R-Design, T6 R-Design Platinum | 4 Cyl 2.0 L GAS
- V60 Cross Country | 2017-2018 | T5, T5 Platinum | 4 Cyl 2.0 L GAS
- XC60 | 2015-2017 | T5, T6, T6 Dynamic, T6 Inscription, T6 Ocean Race, T6 Platinum, T6 Premier, T6 R-Design | 4 Cyl 2.0 L GAS
View More
View related parts
Volvo ECM Part Number: 36012819
$1374.82 MSRP: $1663.16
You Save: $288.34 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Unit; Engine Control Module; ECM
- Replaces: 36010394
Fits the following Volvo Models:
- S60 | 2019-2021 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 R-Design | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- S90 | 2018-2019 | T5 Momentum, T6 Inscription, T6 Momentum, T8 Inscription, T8 Momentum | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- V60 | 2019-2021 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design | 4 Cyl 2.0 L GAS
- V90 | 2018-2021 | T5 Inscription, T5 R-Design, T6 Inscription, T6 R-Design | 4 Cyl 2.0 L GAS
- V90 Cross Country | 2017-2021 | T5, T6, T6 Ocean Race | 4 Cyl 2.0 L GAS
- XC40 | 2019-2022 | T4 Inscription, T4 Momentum, T4 R-Design, T5 Inscription, T5 Momentum, T5 R-Design | 4 Cyl 2.0 L GAS
- XC60 | 2018-2021 | T5 Inscription, T5 Momentum, T5 R-Design, T6 Inscription, T6 Momentum, T6 R-Design, T8 Inscription, T8 Momentum, T8 R-Design | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- XC90 | 2016-2022 | T5 Inscription, T5 Momentum, T5 R-Design, T6 First Edition, T6 Inscription, T6 Momentum, T6 R-Design, T8 Excellence, T8 Inscription, T8 Momentum, T8 R-Design, T8 Recharge Inscription, T8 Recharge Inscription Expression, T8 Recharge R-Design | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View More

| Page 1 of 2 |Next >

1-20 of 39 Results

Volvo Engine Control Module Parts and Q&A

Control Module
8601630
Q: How to remove and refit the Engine Control Module on the automatic transmission ECU on Volvo S70?
A:
The automatic transmission ECU, fuel ECU, and ignition ECU are in the ECU box on the front right-hand side of the engine compartment, in front of the cooling system expansion tank. To remove the ECU make sure the ignition is off, wipe the top of the ECU box lid to avoid leaving dirt inside, release the catch on the side of the lid, and lift it off. Then, pull the locking lever on top of the ECU forwards and withdrawal from slot three of the box, nearest to the right-hand wheel arch. For refitting, find the ECU in the box, engaging it with the connector at the base of the ECU, push down the locking lever to secure it and refit the module box lid. If you are installing a new ECU, adapt the throttle position sensor signal by chocking up all four wheels and applying the handbrake. Start the engine, move selector lever to D (Drive) position, depressing brake pedal firmly, fully depress accelerator pedal for 5 seconds (to close the kickdown switch), then release the accelerator and move selector lever to P (Park) position, the new throttle position sensor signal is stored in the ECU memory. Finally, turn off the engine and take the wheel chocks away.
ECM
8251568
Q: What precautions should be taken before starting work on the Engine Control Module and where is the automatic transmission ECU located on Volvo V40?
A:
The automatic transmission ECU is housed in the passenger compartment at the rear of the facia/centre console. Make sure that the ignition is off before you start work because the ECU can be damaged if the wiring plug is disconnected while the ignition is on. Wait for a further two minutes to make sure that the transmission main relay is completely de-energised and if the engine cooling fan is running when the engine is switched off wait for it to stop and then wait for a further two minutes. Begin by taking out the radio/cassette or storage bin from the centre console, and then the ashtray. Unclip trim panel from right hand side of centre console. The ECU is mounted on a bracket that is fixed by four bolts, remove these bolts and remove the ECU and bracket from beneath the facia. Disconnect the ECU wiring connector and carefully remove the ECU from the car without touching the ECU connector pins, which will damage the ECU by static electricity. For refitting, follow the process in reverse. If a new ECU is installed, adapt it to the throttle position sensor signal, by switching on the ignition without starting the engine, depressing the accelerator pedal fully to activate the kickdown switch for five seconds, and then releasing the pedals to store the new throttle position sensor signal in the ECU memory, and then switching off the ignition.
