Suspension Mounting - Rear
2024 Volvo S90 Crossmember Bushing
Currently shopping for
2024 Volvo S90
Change VehicleCategories Close X
Currently selected
Suspension
- Axle & Differential - Rear
- Drive Axles - Front
- Drive Axles - Rear
- Drive Shaft - Rear
- Front Suspension
- Front Suspension Components
- Lower Control Arm - Front
- Lower Control Arm - Rear
- Rear Suspension
- Rear Suspension Components
- Ride Control - Rear
- Shocks & Components
- Stabilizer Bar & Components
- Struts & Components
- Suspension Mounting - Front
- Suspension Mounting - Rear
- Upper Control Arm - Front
- Upper Control Arm - Rear
- Wheels
Other Categories
A/C & Heating
Air & Fuel Delivery
Belts & Cooling
Body & Hardware
Brakes
Charging & Starting
Driveline & Axles
Electrical
Emission Control & Exhaust
Engine
Headlights & Lighting
Interior & Exterior Trim
Maintenance & Lubrication
Steering
Transmission
How to use OE catalog

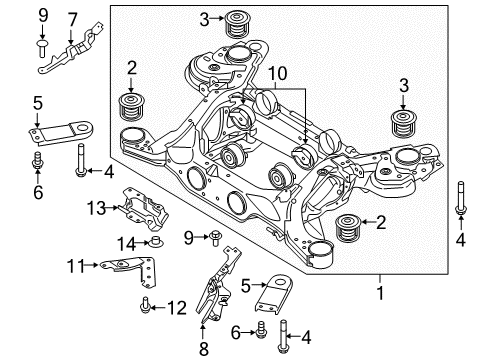

2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Rear Suspension - Suspension Mounting (AWD,With Plug In Hybrid)
- 2.Rear Suspension - Suspension Mounting (AWD,Without Plug In Hybrid)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
32315255
Suspension Crossmember- Part Notes: AWD, With Plug In Hybrid, Without Air Suspension, From Ch 259978
- Replaced By: 32451961
$2085.88 $1575.251 - 132315256
Suspension Crossmember- Part Notes: AWD, With Plug In Hybrid, With Air Suspension, From Ch 259978
$2260.35 $1720.361 - 1
32315790
Suspension Crossmember- Part Notes: AWD, Without Plug In Hybrid, Without Air Suspension, From Ch 259978
- Replaced By: 32451959
$2085.88 $1575.251 - 1$2085.88 $1575.251
- 2
32292938
Suspension Crossmember Front Bushing- Part Notes: AWD, With Plug In Hybrid;AWD, Without Plug In Hybrid
- Location: Driver Side;Passenger Side
$71.64 $55.941
- 3
31360599
Suspension Crossmember Rear Bushing- Part Notes: AWD, With Plug In Hybrid;AWD, Without Plug In Hybrid
- Location: Driver Side;Passenger Side
$71.64 $55.941
- 4
30640914
Suspension Crossmember Mount Bolt- Part Notes: AWD, With Plug In Hybrid;AWD, Without Plug In Hybrid
- Location: Driver Side;Passenger Side
$10.96 $8.551
- 5
32221795
Front Bracket- Part Notes: AWD, With Plug In Hybrid;AWD, Without Plug In Hybrid
- Location: Driver Side;Passenger Side
$24.22 $18.911
- 6
30640939
Front Bracket Screw- Part Notes: AWD, With Plug In Hybrid;AWD, Without Plug In Hybrid
- Location: Driver Side;Passenger Side
$5.48 $4.281
- 7
- 8
- 9
30640782
Bracket Bolt- Part Notes: AWD, With Plug In Hybrid;AWD, Without Plug In Hybrid
- Location: Driver Side;Passenger Side
$3.80 $2.961
- 10
$116.24 $77.361 - 10
$69.30 $46.511 - 10$69.30 $46.511
- 11
32315324
Reinforcement Bracket- Part Notes: AWD, With Plug In Hybrid, From Ch 259978;AWD, Without Plug In Hybrid, From Ch 259978
$24.22 $18.911
- 12
30746769
Reinforcement Bracket Screw- Part Notes: AWD, With Plug In Hybrid, From Ch 259978;AWD, Without Plug In Hybrid, From Ch 259978
- Location: Driver Side;Passenger Side
$2.10 $1.631
- 13

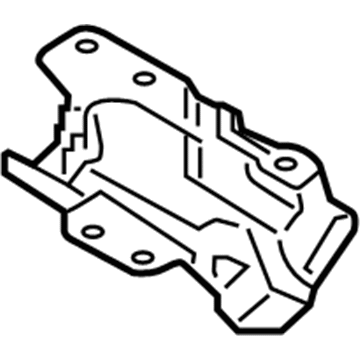

32315334
Protect Plate- Part Notes: AWD, With Plug In Hybrid, From Ch 259978;AWD, Without Plug In Hybrid, From Ch 259978
$14.32 $11.181
- 14
$2.10 $1.631
- 15
$227.54 $176.211
- 16
$2.10 $1.631
- 17
$5.48 $4.281
