How to remove the front shock absorber on Volvo V50?

In order to remove the driveshaft, first slacken the retaining bolt and wheel nuts, then raise and support the front of the car to remove the roadwheel. Then take out the driveshaft retaining bolt (discard the bolts as needed; you need a new one to re-assemble the drive shaft). Slacken the nut until it is level with the end of the balljoint shank, and use a balljoint separator tool to separate the suspension control arm balljoint from the hub carrier, using an Allen key to stop it rotating. Lever the control arm downwards to force the balljoint shank through the hub carrier, being careful not to damage the dust cover. Undo the two bolts holding the brake caliper mounting bracket to the hub carrier, drawing the brake caliper out of the disc and suspending it without stressing the brake hose. Swivel the hub carrier assembly outwards and pull the driveshaft CV joint out of the hub flange. Undo the nut holding the anti-roll bar link balljoint to the suspension strut and using an Allen key to counterhold the shank. Remove the bolt holding the hub carrier together with the shock absorber by slightly spreading the hub carrier with a flat bladed implement as you tap it downwards. From the engine compartment, lift the plastic covers, remove the retaining nuts and remove the engine compartment cross-stay, if fitted. Undo the three bolts holding the strut upper mounting to the body without undoing the centre nut, holding the strut down before lowering it from the wheel arch. For refitting, reverse the removal process, but make sure all nuts and bolts are tightened to the given torque, their use of new nuts and bolts and check the head lamp aim and adjust it if needed.

Genuine Volvo V50 Shock Absorber

Suspension Shock Absorber

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Shock Absorbers found

View related parts

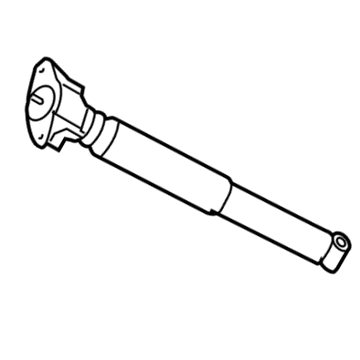

Volvo V50 Shock Absorber Part Number: 30736772
$143.55 MSRP: $215.71
You Save: $72.16 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2010 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Shock Absorber Part Number: 31212499
$143.55 MSRP: $215.71
You Save: $72.16 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Suspension Shock Absorber; Shock
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Shock Absorber Part Number: 31212500
$143.55 MSRP: $215.71
You Save: $72.16 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Suspension Shock Absorber; Shock
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts

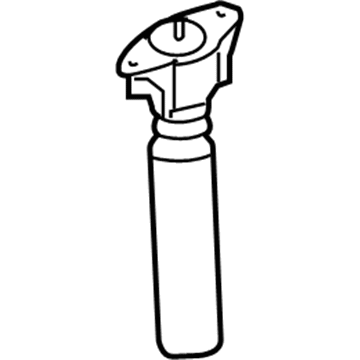

Volvo V50 Shock Absorber Part Number: 31212943
$143.55 MSRP: $215.71
You Save: $72.16 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Suspension Shock Absorber; Shock
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Strut, Passenger Side Part Number: 31277593
$151.20 MSRP: $260.33
You Save: $109.13 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber 2510; Suspension Strut Assembly; Strut
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2009-2011 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Strut, Passenger Side Part Number: 31277587
$192.97 MSRP: $292.39
You Save: $99.42 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Suspension Strut Assembly; Strut
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2008-2011 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Strut, Driver Side Part Number: 31277588
$192.97 MSRP: $292.39
You Save: $99.42 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Suspension Strut Assembly; Strut
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2008-2011 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Strut, Passenger Side Part Number: 31277589
$192.97 MSRP: $292.39
You Save: $99.42 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Suspension Strut Assembly; Strut
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Strut Part Number: 31277590
$192.97 MSRP: $292.39
You Save: $99.42 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Suspension Strut Assembly; Strut
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts

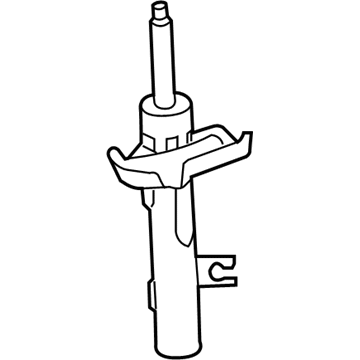

Volvo V50 Strut, Front Part Number: 31277591
$192.97 MSRP: $292.39
You Save: $99.42 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Suspension Strut, Front Right; Strut
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2010 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Strut, Front Part Number: 31277592
$192.97 MSRP: $292.39
You Save: $99.42 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Suspension Strut, Front Left; Strut
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2010 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Strut, Driver Side Part Number: 31277594
$192.97 MSRP: $292.39
You Save: $99.42 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Suspension Strut Assembly; Strut
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2009-2011 | 2.4i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Strut, Driver Side Part Number: 31277602
$192.97 MSRP: $292.39
You Save: $99.42 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Suspension Strut Assembly; Strut
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Strut, Passenger Side Part Number: 31277603
$192.97 MSRP: $292.39
You Save: $99.42 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Suspension Strut Assembly; Strut
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005-2011 | 2.4i, i, T5, T5 R-Design | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volvo V50 Shock Part Number: 30714390
$190.84 MSRP: $227.18
You Save: $36.34 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Shock
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2005 | i, T5 | 5 Cyl 2.4 L GAS, 5 Cyl 2.5 L GAS

Volvo V50 Shock Absorber

The essence of the Volvo V50 Shock Absorber is to smooth out bumpy roads by converting up-and-down forces of individual wheels into warm heat, therefore keeping the cabin steady and steering precise. Each Shock Absorber is fitted with a piston mounted next to the springs and forces hydraulic fluid through tiny holes, reducing the movement speed and preventing the car from bouncing after each pothole. Earlier models in the Volvo compact line applied simple leaf springs but changed to hydraulic dampers, with more recent model years switching to twin-tube Shock Absorber designs and also to monotube. The common twin-tube Shock Absorber design is more affordable and comfortable and is capable of being gas-charged to trim the foam growth in the fluid, but the longer monotube unit dissipates more heat faster and may be mounted in a variety of orientations to give it a sportier feel. More adjustments include designs of spool valves, position sensitive damping that reduces the effort required to travel over small bumps, and acceleration sensitive damping that only stiffens upon demand, enabling the system to be smarter in reacting to the changing speeds of the road. Modern Volvo variants of the suspension system use adaptive technology that even uses fluids that change their thickness when subjected to electricity or magnetic force, which provides the driver with a constantly self-tuning ride as it switches between softness and control. Whichever version, all Volvo Shock Absorbers are installed in conjunction with the struts that keep the chassis intact, allowing the second generation V50 to corner well and bring to a halt in little time.

OEM parts are the only choice for top quality and real functionality. They pass strict checks, and they match Volvo's factory specs, so installation is easy. If you need new Shock Absorber and you want quality and fit. You will find both here. Our site has a wide range of OEM Volvo V50 parts. The prices are unbeatable, allowing you to get value for money. Each genuine V50 Shock Absorber comes with the manufacturer's warranty. That gives you peace of mind. We ship fast to your door. Order today, and enjoy a smooth, no-hassle upgrade with parts that fit right.

Volvo V50 Shock Absorber Parts and Q&A

Shock
30714390
Q: How to remove the front shock absorber on Volvo V50?
A:
In order to remove the driveshaft, first slacken the retaining bolt and wheel nuts, then raise and support the front of the car to remove the roadwheel. Then take out the driveshaft retaining bolt (discard the bolts as needed; you need a new one to re-assemble the drive shaft). Slacken the nut until it is level with the end of the balljoint shank, and use a balljoint separator tool to separate the suspension Control Arm balljoint from the hub carrier, using an Allen key to stop it rotating. Lever the control arm downwards to force the balljoint shank through the hub carrier, being careful not to damage the dust cover. Undo the two bolts holding the brake caliper mounting bracket to the hub carrier, drawing the brake caliper out of the disc and suspending it without stressing the brake hose. Swivel the hub carrier assembly outwards and pull the driveshaft CV joint out of the hub flange. Undo the nut holding the anti-roll bar link balljoint to the suspension strut and using an Allen key to counterhold the shank. Remove the bolt holding the hub carrier together with the shock absorber by slightly spreading the hub carrier with a flat bladed implement as you tap it downwards. From the engine compartment, lift the plastic covers, remove the retaining nuts and remove the engine compartment cross-stay, if fitted. Undo the three bolts holding the strut upper mounting to the body without undoing the centre nut, holding the strut down before lowering it from the wheel arch. For refitting, reverse the removal process, but make sure all nuts and bolts are tightened to the given torque, their use of new nuts and bolts and check the head lamp aim and adjust it if needed.
