How to replace the Axle Shaft Seal on Volvo S80?

To change the seals on a driveshaft, first dismount the correct driveshaft. Carefully use a large screwdriver or suitable lever to prise the oil seal out of the transmission casing ensuring not to damage the casing by using a piece of wood for protection. Clean out the oil seal seating in transmission casing and then apply a little general purpose grease to the new oil seal lips and push it part way in the casing by hand, making sure it is square to its seating. Use appropriate tubing or a large socket to force the oil seal all the way into position until flush with the casing edge and fit up the driveshafts. For the input shaft oil seal, take out the transmission together with the clutch release bearing/slave cylinder. Note the fitted depth on the drill a small hole on the hard outer surface of the seal and insert a self-tapping screw, and by pliers to extract the seal. Lubricate the new seal with grease and fit with the lips to the bellhousing with the lips towards the gearbox side, using a deep socket or suitable tubing to seat it. Finally, re-fit the release bearing/slave cylinder and the transmission.

Genuine Volvo S80 Axle Shaft Seal

CV Axle Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Axle Shaft Seals found

View related parts
Volvo S80 Pinion Seal Part Number: 30735124
$25.06 MSRP: $32.09
You Save: $7.03 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sealing Ring; Differential Seal; Axle Shaft Seal
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2013-2015 | 3.2, T5, T6 | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
View related parts

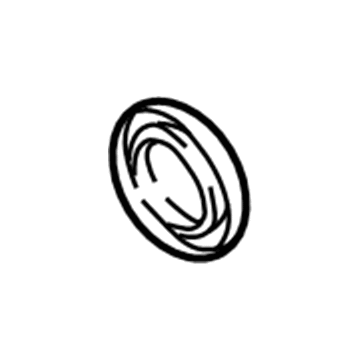

Volvo S80 Pinion Seal Part Number: 1385077
$32.15 MSRP: $37.64
You Save: $5.49 (15%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sealing Ring; Differential Seal; Axle Shaft Seal; Dust Shield, Pinion Seal, Rear Seal
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2004-2006 | 2.5T, 2.5T AWD, 2.9, T6, T6 Premier | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS
View related parts

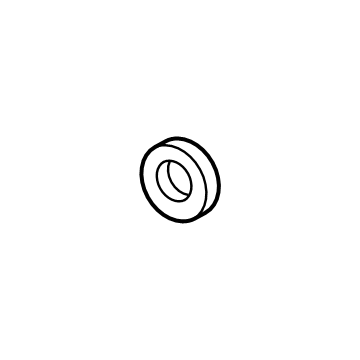

Volvo S80 Pinion Seal Part Number: 30713263
$23.62 MSRP: $30.25
You Save: $6.63 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sealing; Differential Seal; Axle Shaft Seal; Axle Seals, Front Seal, Pinion Seal, Seal
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2007-2012 | 3.2, T6, V8 | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS
View related parts
Volvo S80 Pinion Seal, Rear Passenger Side Part Number: 31325268
$30.57 MSRP: $39.15
You Save: $8.58 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Drive Axle Shaft Seal, Rear; Differential Seal; Axle Seal, Axle Seals, Pinion Seal
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2013-2015 | 3.2, T5, T6 | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
View related parts

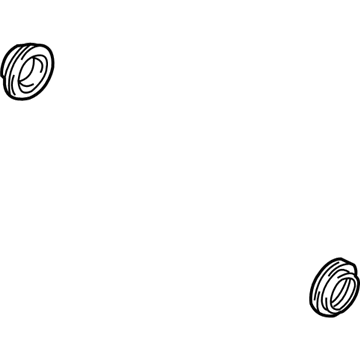

Volvo S80 Axle Seal Part Number: 8653928
$30.57 MSRP: $39.15
You Save: $8.58 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Axle Shaft Seal; Differential Seal; Oil Seal
- Warranty: This genuine part is guaranteed by Volvo's factory warranty.
Fits the following Vehicles:
- 2004-2012 | 2.5T, 2.5T AWD, 2.9, 3.2, T6, T6 Premier, V8 | 5 Cyl 2.5 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 8 Cyl 4.4 L GAS

Volvo S80 Axle Shaft Seal

OEM parts are the only choice for top quality and real functionality. They pass strict checks, and they match Volvo's factory specs, so installation is easy. If you need new Axle Shaft Seal and you want quality and fit. You will find both here. Our site has a wide range of OEM Volvo S80 parts. The prices are unbeatable, allowing you to get value for money. Each genuine S80 Axle Shaft Seal comes with the manufacturer's warranty. That gives you peace of mind. We ship fast to your door. Order today, and enjoy a smooth, no-hassle upgrade with parts that fit right.

Volvo S80 Axle Shaft Seal Parts and Q&A

Pinion Seal
1385077
Q: How to replace the Axle Shaft Seal on Volvo S80?
A:
To change the seals on a driveshaft, first dismount the correct driveshaft. Carefully use a large screwdriver or suitable lever to prise the oil seal out of the transmission casing ensuring not to damage the casing by using a piece of wood for protection. Clean out the oil seal seating in transmission casing and then apply a little general purpose grease to the new oil seal lips and push it part way in the casing by hand, making sure it is square to its seating. Use appropriate tubing or a large socket to force the oil seal all the way into position until flush with the casing edge and fit up the driveshafts. For the input shaft oil seal, take out the transmission together with the clutch release bearing/slave cylinder. Note the fitted depth on the drill a small hole on the hard outer surface of the seal and insert a self-tapping screw, and by pliers to extract the seal. Lubricate the new seal with grease and fit with the lips to the bellhousing with the lips towards the gearbox side, using a deep socket or suitable tubing to seat it. Finally, re-fit the release bearing/slave cylinder and the transmission.
